DRIVE
-
Triple-eccentric drive is precisely counterbalanced to impart smooth, uniform motion to all flasks regardless of their position on the platform.
-
Servo-motor makes speed control precisely and ensures high-speed performance and stability.
SAFETY
-
Audible and Visible Alarms alert the user and shuts off heaters to setpoint deviation.
-
Automatic restart after power interrupt with Non-Volatile Memory keeps studies running smoothly.
-
The running will stop when the door is open. It is more safe.
CLEAN
-
SUS304 stainless steel chamber.
-
With UV sterilization.
COOLING
-
High quality and low noise CFC free compressors ensure refrigeration effect and stable.
-
Special refrigerating process control technology with adjustable cooling capacity makes temperature control more accuracy.(option)
-
Timing frost-removing function, the timing range is 1to 89minutes and the defrost interval is 30-600 minutes adjustable, ensures machine working long time in low temperature without ice block.
|
Product Name |
Vertical Shaking Incubator |
|
|
|
Model |

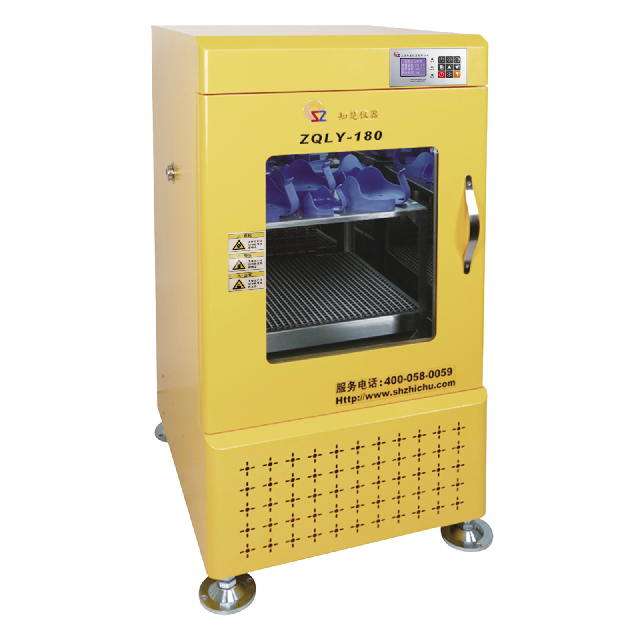

ZQLY-180 |

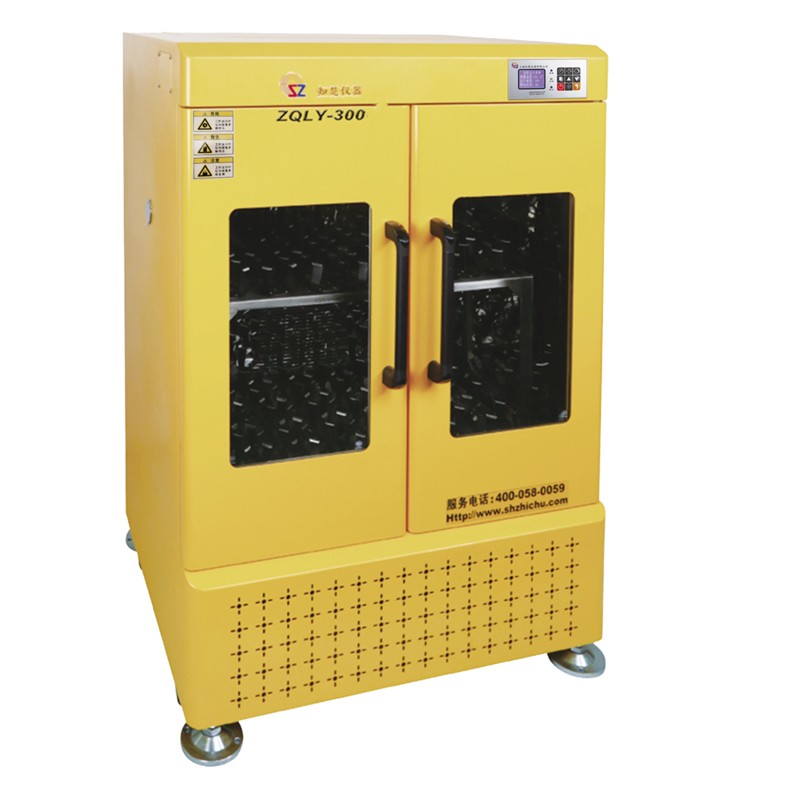

ZQLY-300 |

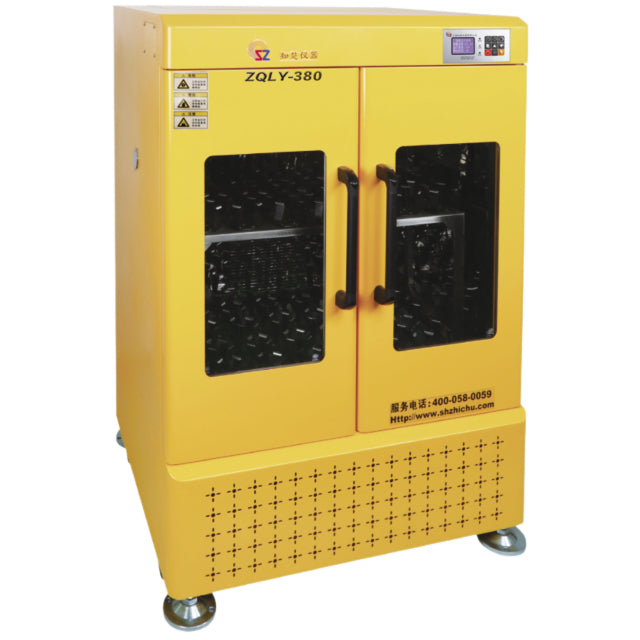

ZQLY-380 |
|
Shaking Speed Range |
10-320 rpm |
10-300 rpm |
|
|
Shaking Control Accuracy |
±1rpm |
|
|
|
Orbit (diameter) |
φ26mm |
φ26mm, φ50mm (optional) |
|
|
Temp. Range |
Cooling 4℃～60℃(at 23℃～25 ℃) |
|
|
|
Temp. Accuracy |
±0.1℃ |
|
|
|
Temp. Uniformity |
≤±0.8℃(at 37℃)（Model ZCLY-180） ≤±1℃(at 37℃) |
|
|
|
Inner chamber material |
Mirror Stainless Steel |
|
|
|
CO2 Control Range(option) |
0-20% Model ZCLY-180 |
NA |
|
|
CO2 Control Accuracy(option) |
0.1% |
NA |
|
|
Photosynthetic light bank (option) |
0~20000LX 1% step adjustable (optional) Model ZQLY-180G |
0~20000LX 1% step adjustable (optional) Model ZQLY-300G Model ZQLY-380G |
|
|
Display |
LCD non-touch screen with membrane switch |
|
|
|
|
Touch screen is optional (except for CO2 model ZCLY-180) |
|
|
|
Air circulation |
Forced air circulation |
|
|
|
Parameter Control |
P.I.D Microprocessor |
|
|
|
Timer Range |
0-999.9 hrs.("0" means running continuously) |
|
|
|
Noise Level |
<55dB |
|
|
|
Power Source |
AC220±10% (110V is optional) 50~60Hz |
|
|
|
Each Platform Size (W×D,mm) |
485*485 |
786*455 |
986*455 |
|
Internal effective height |
640mm |
805mm |
|
|
Each Inner Chamber Capacity |
213L |
402L |
495L |
|
Overall Dimension (W*D*H,mm) |
760*680*1295 |
960*780*1430 |
1162*780*1430 |
|
Net Weight(kg) |
188 |
265 |
285 |
|
Max. Capacity for each platform (Stainless steel clamps) |
250ml*25 500ml*16 1000ml*9 2000ml*5 3000ml*4 |
250ml*40 500ml*28 1000ml*15 2000ml*8 3000ml*6 |
250ml*50 500ml*32 1000ml*18 2000ml*10 3000ml*8 |
|
Max. Capacity for each platform (Plastic molding clamps) |
250ml*25 500ml*16 1000ml*9 2000ml*5 3000ml*4 |
250ml*40 500ml*28 1000ml*15 2000ml*8 3000ml*6 |
250ml*50 500ml*32 1000ml*18 2000ml*10 3000ml*8 |
|
Model |
ZQLY-180 |
ZQLY-300 |
ZQLY-380 |
||
|
Microplate holder (four spaces) |
2 |
4 |
5 |
||
|
Test tube rack |
4 |
6 |
9 |
||
|
Erlenmeyer Flask |
50ml |
SS |
81 |
104 |
112 |
|
100ml |
SS |
49 |
66 |
84 |
|
|
Plastic |
36 |
60 |
78 |
||
|
125ml |
SS |
36 |
66 |
78 |
|
|
150ml |
SS |
36 |
45 |
78 |
|
|
200ml |
SS |
25 |
45 |
55 |
|
|
250ml |
Plastic |
25 |
40 |
50 |
|
|
SS |
25 |
40 |
50 |
||
|
300ml |
SS |
25 |
40 |
50 |
|
|
500ml |
Plastic (bottom ⌀110mm) |
16 |
28 |
32 |
|
|
Plastic (bottom ⌀114mm) |
16 |
24 |
28 |
||
|
SS |
16 |
28 |
32 |
||
|
1000ml |
Plastic |
9 |
15 |
18 |
|
|
SS |
9 |
15 |
18 |
||
|
2000ml |
Plastic |
5 |
8 |
10 |
|
|
SS |
5 |
8 |
10 |
||
|
3000ml |
Plastic |
4 |
6 |
8 |
|
|
SS |
4 |
6 |
8 |
||
|
2800ml |
SS |
4 |
6 |
8 |
|
|
5000ml |
SS |
- |
- |
- |
|
|
Dimensions of single platform(mm) |
485*485 |
786*455 |
986*455 |
||
