ZHICHU ultrasonic cell crusher industry is widely used. It can be used to disintegrate or shear most cells - cell lysing, bacteria, spores, and DNA/Chromatin and accelerate the reaction speed of chemical biology, logistics, and liquid degassing. It can also be used in extraction, disintegration, mutation, gas suspension, homogenization. It can homogenize liquids, accelerate enzymatic and chemical reactions, stimulate bacterial activity, disperse solids in liquids and degas liquids. It is widely used in the life and analytical sciences, microbiology and physics etc.
Key Features:
- 7-inch touch screen, easy and convenient to operate, display amplitude, power, temperature, and time
- Stackable design for control module and sanitation chamber, saving space
- Sanitation chamber in double-layer soundproof design, easy to clean
- Ultrasonic duration and power can be setup as demand.

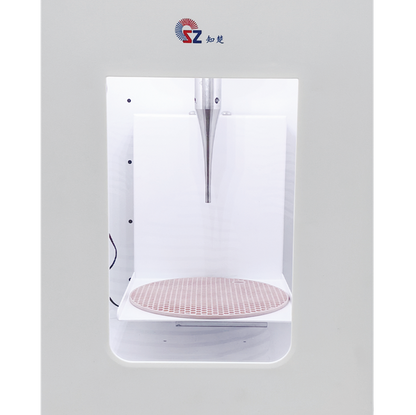

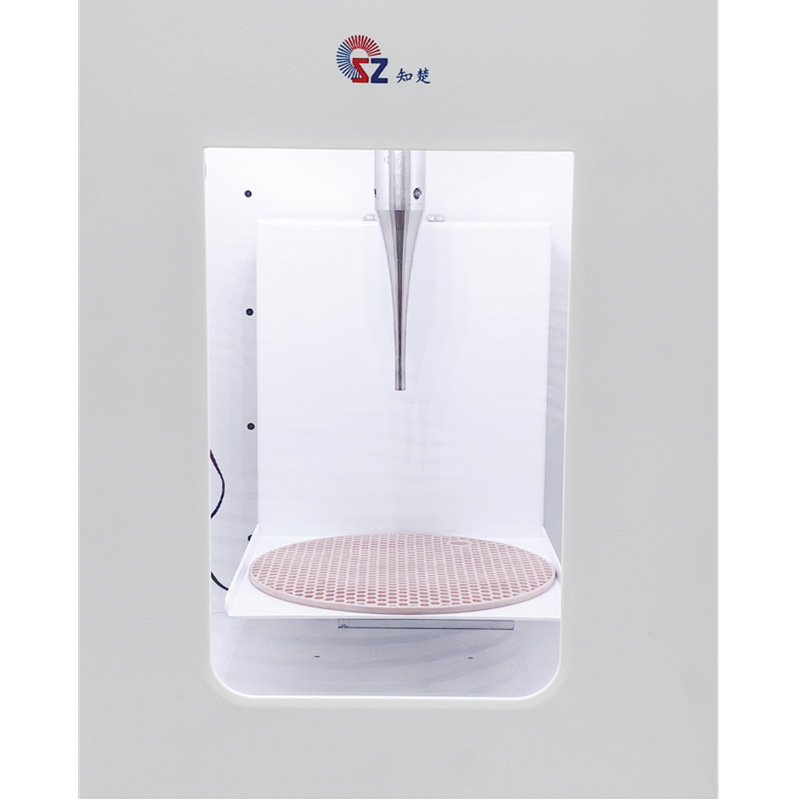

- Vessel workbench can be moved vertically by setup on control module
- With over-temperature, overload and time protection functions
- With functions of UV sterilization and lighting.
- Optional mobile phone APP remote control.
Technical Specifications:
|
Model |
ZCPS-600 |
ZCPS-900 |
ZCPS-1200 |
ZCPS-1500 |
|
Frequency |
20~25KHz, automatic tracking and adaptive | |||
|
Power Range |
5~650w |
10~1000w |
12~1200w |
18~1800w |
|
Timing range |
1-999mins | |||
|
Sample volume capacity |
0.1~600ml |
0.1~900ml |
1~1200ml |
1~1500ml |
|
Standard horn |
Ø6mm |
Ø6mm |
Ø20mm |
Ø22mm |

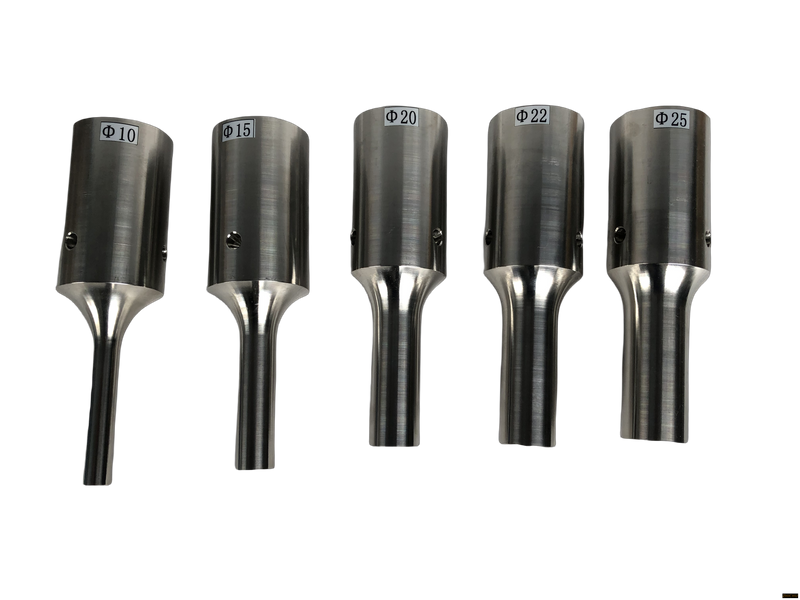

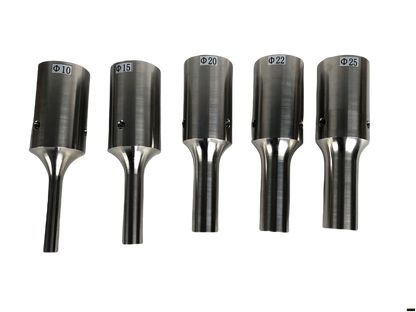

Selective Horns:
|
No. |
Diameter |
Volume |
Power ratio |
ZCPS-600 |
ZCPS-900 |
ZCPS-1200 |
ZCPS-1500 |
|
1 |
Ø2mm |
0.2-5ml |
1-35% |
√ |
√ |
√ |
N/A |
|
2 |
Ø3mm |
3-10ml |
1-45% |
√ |
√ |
√ |
√ |
|
3 |
Ø6mm |
10-100ml |
1-70% |
√ |
√ |
√ |
√ |
|
4 |
Ø8mm |
20-200ml |
1-85% |
√ |
√ |
√ |
√ |
|
5 |
Ø10mm |
30-300ml |
1-90% |
√ |
√ |
√ |
√ |
|
6 |
Ø12mm |
50-600ml |
10-90% |
√ |
√ |
√ |
√ |
|
7 |
Ø15mm |
200-750ml |
10-90% |
N/A |
N/A |
√ |
√ |
|
8 |
Ø20mm |
100-1000ml |
10-90% |
N/A |
N/A |
√ |
√ |
|
9 |
Ø22mm |
200-1200ml |
20-95% |
N/A |
N/A |
√ |
√ |
|
10 |
Ø25mm |
300-1500ml |
30-95% |
N/A |
N/A |
N/A |
√ |
