SENSOR
-
Infrared CO2 sensor measures the CO2 concentration automatically with high sensitivity.
-
For each shaker, a bottle of CO2 gas (20kg) can be used not less than 35days if the door is open normally, and about 145 days when door is not opened.
-
PT-100 temperature sensor
-
Humidity sensor (option)
DATA RECORD
-
Data memory, can record more than 600,000,00.00 data.
-
Data curves such as real-time temperature and speed can be displayed.
-
Data easily transfer through the USB interface.
CLEAN
-

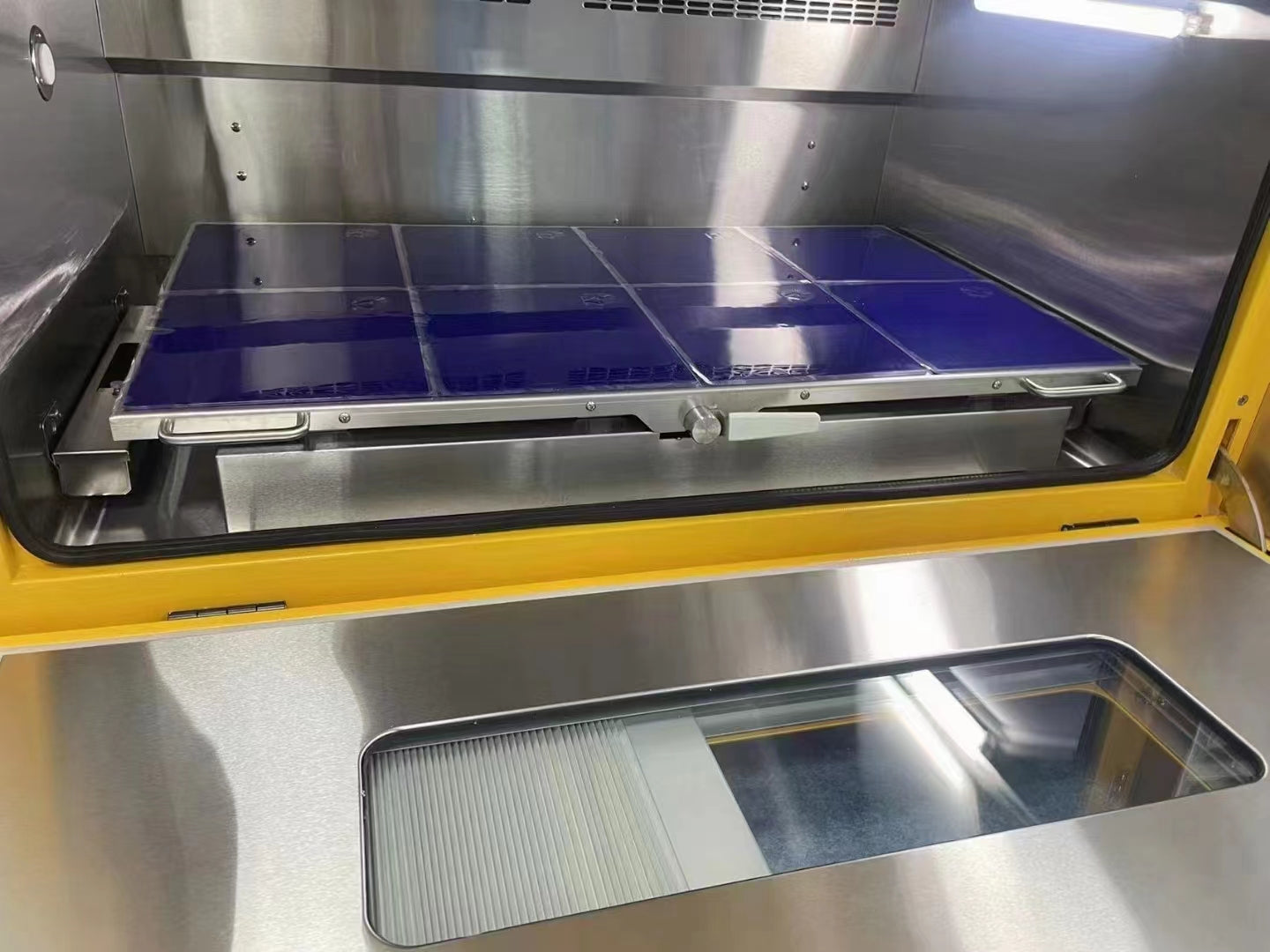

Antibacterial stainless steelinterior chamber with rounded corners easy to clean and protect bacteria breeding.
-

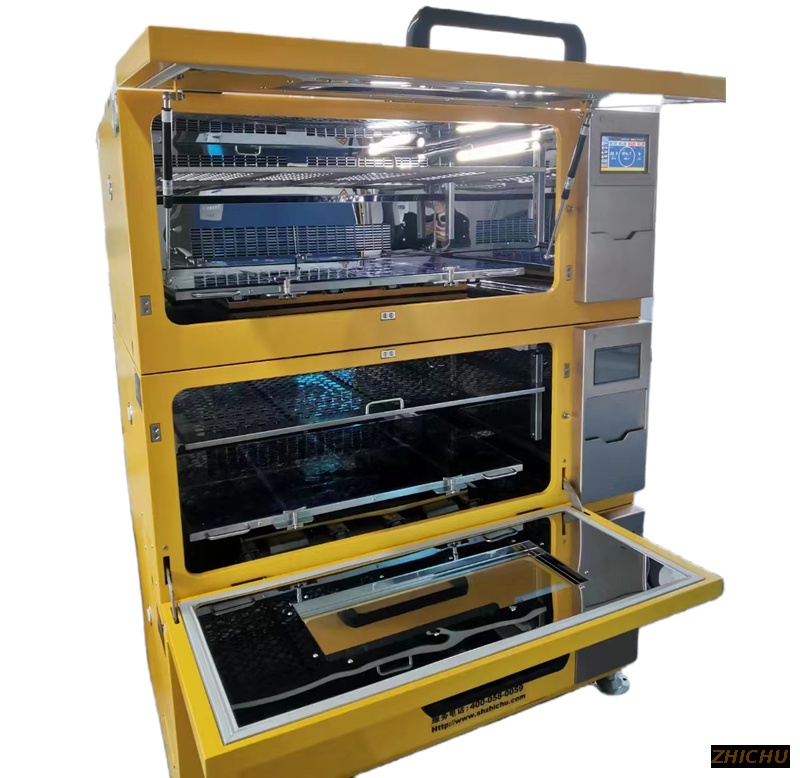

Glides up door which is non-screw design and slide-out platform provide easy access to all samples.
-
With UV sterilization.
-
The bottom of the chamber can be washed thoroughly.
Technical Specifications
|
Product Name |

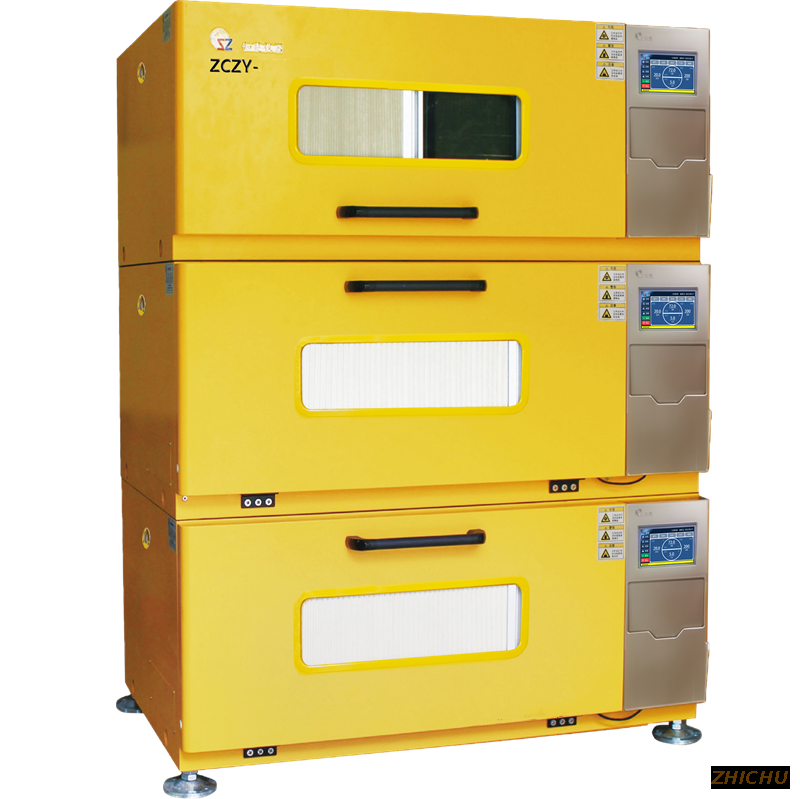

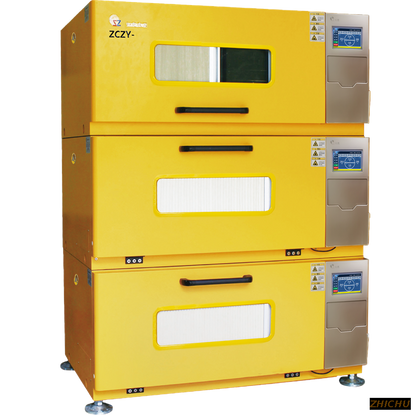

CO2 Shaking Incubator (Stackable) |
|||
|
Model |
ZCZY-AN (1 unit) ZCZY-BN (2 units) ZCZY-CN (3 units) |
ZCZY-AS8(1 unit) ZCZY-BS8(2 units) ZCZY-CS8(3 units) |
ZCZY-AS9(1 unit) ZCZY-BS9(2 units) ZCZY-CS9(3 units) |
ZCZY-ASE(1 unit) ZCZY-BSE(2 units) ZCZY-CSE(3 units) |
|
Shaking Speed Range |
10-250 rpm (standard), 10-300 rpm (option) |
|||
|
Shaking Control Accuracy |
1rpm |
|||
|
Orbit (diameter) |
450mm (standard), 425mm(option) or customized |
|||
|
Temp. Range |
Cooling 4°C~60°C (at 23°C ~25 "C) Thermostatic R.T. 5°C~60°C |
|||
|
Temp. Accuracy |
0.1°C |
|||
|
Temp. Uniformity |
≤10.5°C (at 37°C) |
|||
|
Inner chamber material |
SUS304 Antibacterial stainless steel |
|||
|
CO2 Control Range |
0-20% |
|||
|
CO2 Control Accuracy |
0.1% |
|||
|
Humidity Adjustment Accuracy (option) |
1% |
|||
|
Humidity Control Accuracy (option) |
5% |
|||
|
Humidity Control Range (option) |
Ambient humidity-90% R.H |
|||
|
Display |
7" LCD Touch Screen |
|||
|
Air circulation |
Forced air circulation |
|||
|
Parameter Control |
P.I.D Microprocessor |
|||
|
Timer Range |
0-999.9 hrs. ("0" means running continuously) |
|||
|
Noise Level |
< 55dB |
|||
|
Power Source |
AC220+10% (110V is optional) 50-60Hz |
|||
|
Each Platform Size (W×D,mm) |
555*530 |
928*530 |
1000*530 |
1000*630 |
|
Internal effective height |
345mm (Height measured from top of platform) |
|||
|
Each unit Inner Chamber Capacity |
193L |
306L |
339L |
365L |
|
Overall Dimension (W*D*H,mm) |
990*845*630 990$845*1185 990*845*1740 |
1360*845*630 1360*845*1185 1360*845*1740 |
1430*845*630 1430*845*1185 1430*845*1740 |
1430*895*630 1430*895*1185 1430*895*1740 |
|
Net Weight (kg) |
200(1 unit) 368(2 units) 515(3 units) |
214(1 unit) 409(2 units) 596(3 units) |
272(1 unit) 506(2 units) 728(3 units) |
282(1 unit) 526(2 units) 758(3 units) |
Accessories
| Quantity List on Standard Flask Holders/ Microplate holders / Tube racks | ||||||
|
Model |
ZCZY-AN |
ZCZY-AS8 |
ZCZY-AS9 |
ZCZY-ASE |
||
|
Microplate holder (four spaces) |
3 |
6 |
7 |
7 |
||
|
Test tube rack |
4 |
7 |
9 |
9 |
||
|
Flask holders |
50ml |
SS |
90 |
135 |
153 |
187 |
|
100ml |
SS |
56 |
91 |
98 |
135 |
|
|
Plastic |
49 |
84 |
98 |
112 |
||
|
125ml |
SS |
49 |
91 |
98 |
112 |
|
|
150ml |
SS |
42 |
84 |
91 |
104 |
|
|
200ml |
SS |
36 |
66 |
72 |
84 |
|
|
250ml |
Plastic |
30 |
60 |
66 |
66 |
|
|
SS |
36 |
66 |
66 |
77 |
||
|
300ml |
SS |
30 |
60 |
66 |
66 |
|
|
500ml |
Plastic (bottom⌀110mm) |
24 |
40 |
45 |
45 |
|
|
Plastic (bottom ⌀114mm) |
20 |
32 |
36 |
45 |
||
|
SS |
25 |
45 |
45 |
45 |
||
|
1000ml |
Plastic |
14 |
23 |
28 |
28 |
|
|
SS |
16 |
28 |
28 |
28 |
||
|
2000ml |
Plastic |
9 |
15 |
18 |
18 |
|
|
SS |
9 |
15 |
18 |
18 |
||
|
3000ml |
Plastic |
5 |
11 |
14 |
15 |
|
|
SS |
5 |
11 |
14 |
15 |
||
|
2800ml |
SS |
5 |
8 |
11 |
12 |
|
|
5000ml |
SS |
- |
- |
- |
- |
|
|
Dimensions of single platform(mm) |
555*530 |
928*530 |
1000*530 |
1000*630 |
||
