STACKABLE
-
Stack up to 3 units high, Space-saving and high-capacity.
-
Each machine operates independently.
DRIVE
-
Triple-eccentric drive is precisely counterbalanced to impart smooth, uniform motion to all flasks regardless of their position on the platform.
-
Servo-motor makes speed control precisely and ensures high-speed performance and stability.
SAFETY
-
Audible and Visible Alarms alert the user and shuts off heaters to setpoint deviation.
-
Automatic restart after power interrupt with Non-Volatile Memory keeps studies running smoothly.
-
The running will stop when the door is open. It is more safe.
CLEAN
-
SUS304 stainless steel interior chamber with rounded corners easy to clean and protect bacteria breeding.
-
Slide-out platform provide easy access to all samples.
-
With UV sterilization.
-
The bottom of the chamber can be washed thoroughly.
COOLING
-
High quality and low noise CFC free compressors ensure refrigeration effect and stable.
-
Special refrigerating process control technology with adjustable cooling capacity makes temperature control more accuracy. (optional)
-
Timing frost-removing function, the timing range is 1to 89minutes and the defrost interval is 30-600 minutes adjustable, ensures machine working long time in low temperature without ice block.
|
Product Name |
 Small Refrigerated Shaking Incubator(Stackable)
|
|||
|
Model |

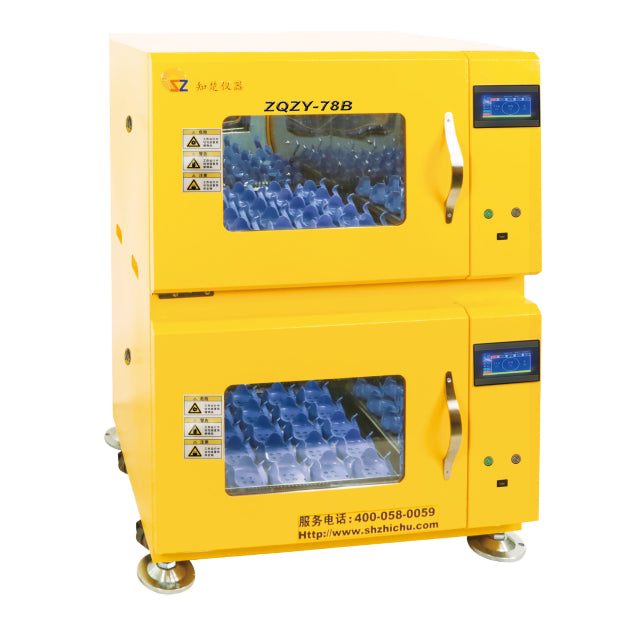

ZQZY-78A (1 unit) ZQZY-78B (2 units) ZQZY-78C (3 units) |

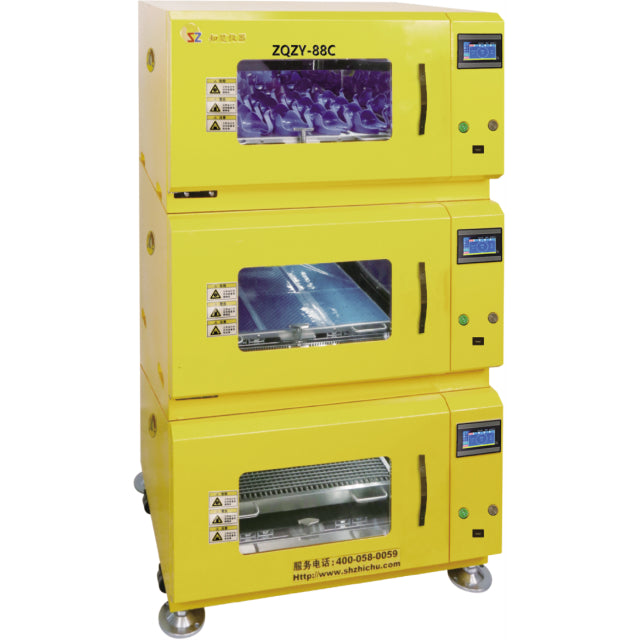

ZQZY-88A(1 unit) ZQZY-88B(2 units) ZQZY-88C(3 units) |
ZQZY-98A(1 unit) ZQZY-98B(2 units) ZQZY-98C(3 units) |
ZQZY-108A(1 unit) ZQZY-108B(2 units) ZQZY-108C(3 units) |
|
Shaking Speed Range |
10-350rpm(3rd top unit 10-300rpm) |
10-300rpm |
||
|
Shaking Control Accuracy |
±1rpm |
|||
|
Orbit (diameter) |
φ26mm，φ50mm(optional) |
|||
|
Temp. Range |
Cooling 4℃～60℃(at 23℃～25 ℃) |
|||
|
Temp. Accuracy |
±0.1℃ |
|||
|
Temp. Uniformity |
≤±0.5℃(at 37℃) |
|||
|
Inner chamber material |
SUS304 Mirror stainless steel |
|||
|
Photosynthesis light bank (option) |
Up to 20,000 lux, adjustable 1%~100% with 1% increment |
|||
|
Humidity control(option) |
Ambient humidity to 90%r.h. |
|||
|
Display |
4.3'' LCD Touch Screen |
|||
|
Air circulation |
Forced air circulation |
|||
|
Parameter Control |
P.I.D Microprocessor |
|||
|
Timer Range |
0-999.9 hrs.("0" means running continuously) |
|||
|
Noise Level |
<55dB |
|||
|
Power Source |
AC220±10% (110V is optional) 50~60Hz |
|||
|
Each Platform Size(W×D,mm) |
475*465 |
575*465 |
575*465 |
625*555 |
|
Internal effective height |
365mm |
345mm |
435mm |
365mm |
|
Each Inner Chamber Capacity |
128L |
155L |
176L |
197L |
|
Overall Dimension (W*D*H,mm) |
820*700*635 820*700*1200 820*700*1765 |
920*700*635 920*700*1200 920*700*1765 |
920*700*70 920*700*1340 920*700*1975 |
980*800*635 980*800*1200 980*800*1765 |
|
Net Weight(kg) |
115(1 unit) 250(2 units) 365(3 units) |
121(1 unit) 268(2 units) 385(3 units) |
161(1 unit) 289(2 units) 438(3 units) |
132(1 unit) 255(2 units) 366(3 units) |
| Quantity List on Standard Flask Holders/ Microplate holders / Tube racks | ||||||
|
Model |
ZQZY-78A |
ZQZY-88A |
ZQZY-98A |
ZQZY-108A |
||
|
Microplate holder (four spaces) |
2 |
3 |
3 |
4 |
||
|
Test tube rack |
4 |
4 |
4 |
6 |
||
|
Flask holders |
50ml |
SS |
64 |
80 |
80 |
99 |
|
100ml |
SS |
42 |
56 |
56 |
72 |
|
|
Plastic |
36 |
42 |
42 |
56 |
||
|
125ml |
SS |
42 |
48 |
48 |
56 |
|
|
150ml |
SS |
36 |
42 |
42 |
56 |
|
|
200ml |
SS |
30 |
35 |
35 |
42 |
|
|
250ml |
Plastic |
25 |
30 |
30 |
42 |
|
|
SS |
25 |
30 |
30 |
42 |
||
|
300ml |
SS |
25 |
30 |
30 |
42 |
|
|
500ml |
Plastic (bottom ⌀110mm) |
16 |
20 |
20 |
25 |
|
|
Plastic (bottom ⌀114mm) |
16 |
20 |
20 |
24 |
||
|
SS |
16 |
20 |
20 |
25 |
||
|
1000ml |
Plastic |
9 |
12 |
12 |
16 |
|
|
SS |
9 |
12 |
12 |
16 |
||
|
2000ml |
Plastic |
5 |
8 |
8 |
9 |
|
|
SS |
5 |
8 |
8 |
9 |
||
|
3000ml |
Plastic |
4 |
5 |
5 |
8 |
|
|
SS |
5 |
5 |
5 |
8 |
||
|
2800ml |
SS |
4 |
5 |
5 |
5 |
|
|
5000ml |
SS |
- |
- |
4 |
- |
|
|
Dimensions of single platform(mm) |
475*465 |
575*465 |
575*465 |
625*555 |
||
