Key Features:
- Unique horizontal double circulation air ducts.
- Annular heating and refrigeration system.
- The automatic defrosting function is provided, and defrosting time, defrosting interval and automatic defrosting ON or not, etc. can be set.
- Dual-channel ultrasonic humidification system with high humidification efficiency.
- Optional printer, three-level permission management, operation records, PDF format export and other functions.
- With data logging function. There is a USB port to export and save all data.
- With over-temperature alarm, and over-temperature automatic heating switching-off.
- UV sterilization is optional.
Technical Specifications:
|
Model |

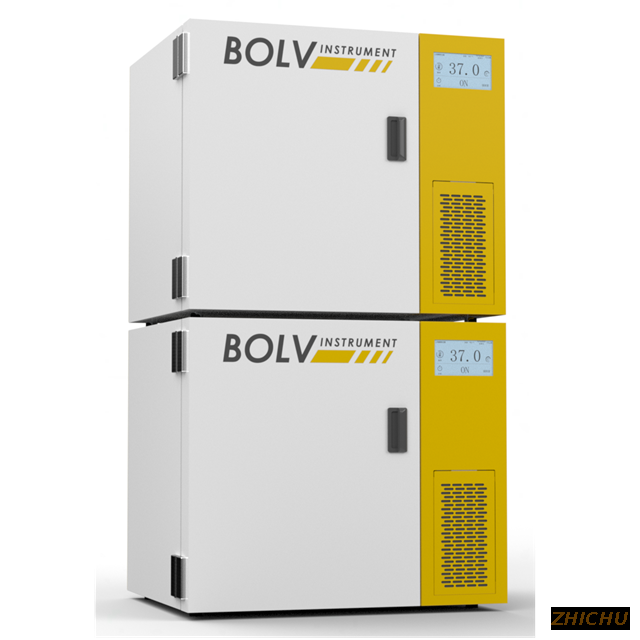

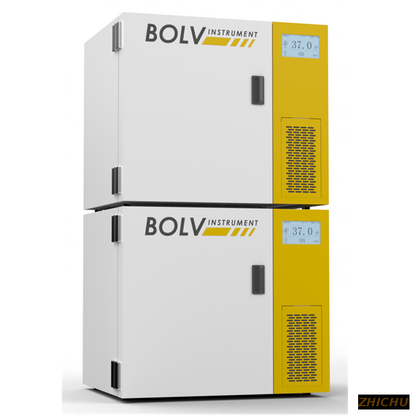

CT-100i (2 units can be stacked) |
|
Supply voltage |
AC110V/50Hz |
|
Display screen |
7-inch touch screen |
|
Volume of box |
100L |
|
Temperature control range |
0-70 ℃ (at RT25 ℃) |
|
Temperature display accuracy |
±0.1 |
|
At r.t. 25 ℃ and set temperature of 37 ℃ |
the temperature uniformity is ≤± 0.3 ℃, and temperature fluctuation is ≤± 0.1 ℃ (9-probe temperature measurement) |
|
Temperature control mode |
PID microcomputer control |
| Inner material |
Antibacterial SUS304 stainless steel |
| Number of partition plates |
Standard configured 2 pcs |
|
Test hole |
inner diameter 12 mm |
|
Dimension of inner incubator |
W400 × D495 × H510mm |
|
External dimensions |
W825 × D685 × H775mm(casters included) |
|
Cooling and heating methods |
The unique annular heating and cooling technology is adopted |
|
Other Features |
The automatic defrosting function is provided, and defrosting time, defrosting interval and automatic defrosting ON or not, etc. can be set |
|
External cloud platform interface is reserved, and the cloud platform system is optional |
|
|
With data recording function, the recording time can be set, 150000 pieces of data can be recorded, and the temperature curves can be displayed to facilitate data analysis; there is a USB interface to export and save the above data; |
|
|
With over-temperature alarm function and over-temperature automatic heating switching-off function |
