Key Features:
- Unique horizontal double circulation air ducts.
- Annular heating and refrigeration system.
- The automatic defrosting function is provided, and defrosting time, defrosting interval and automatic defrosting ON or not, etc. can be set.
- Dual-channel ultrasonic humidification system with high humidification efficiency.
- With humidification function of the bottom reservoir, with no water alarm function.
- Optional printer, three-level permission management, operation records, PDF format export and other functions.
- Air duct UV sterilization function, sterilizing while culturing.(model CT-150H CT-260H)
- Add UV sterilization inside the incubator.(model CT-150M CT-260M)
Technical Specifications:
|
Model |
CTAH-150 CT-150i CT-150H CT-150M |
CTAH-260 CT-260i CT-260H CT-260M |
|
Supply voltage |
AC220V/50Hz |
AC220V/50Hz |
|
Power |
Max. 2000W |
Max. 2000W |
|
Display screen |
7-inch touch screen |
7-inch touch screen |
|
Volume of box |
175L |
300L |
|
Temperature control range |
0-70 ℃ (at RT25 ℃) |
0-70 ℃ (at RT25 ℃) |
|
Temperature display accuracy |
±0.1 |
±0.1 |
|
At r.t. 25 ℃ and set temperature of 37 ℃ |
the temperature uniformity is ≤± 0.3 ℃, and temperature fluctuation is ≤± 0.1 ℃ (9-probe temperature measurement) |
|
|
Temperature control mode |
PID microcomputer control |
PID microcomputer control |
| Natural humidification | via the bottom reservoir, with no water alarm(model CT-150H CT-150M) | |
| Automatic humidification | Dual-channel ultrasonic humidification system, with low water alarm(model CTAH-150 CTAH-260) | |
| Humidity control range(only for automatic humidification) | 30%-95%(when the humidity is less than 30% inside the incubator ) |
|
| Humidity fluctuation | ±2% | |
| Humidity adjust accuracy | 0.1% | |
| Inner material |
Antibacterial stainless steel |
Antibacterial stainless steel |
|
Sterilization function |
with UV sterilization in air duct(model CT-150H) |
|
| with UV sterilization in air duct and inside the incubator(model CT-150M) | ||

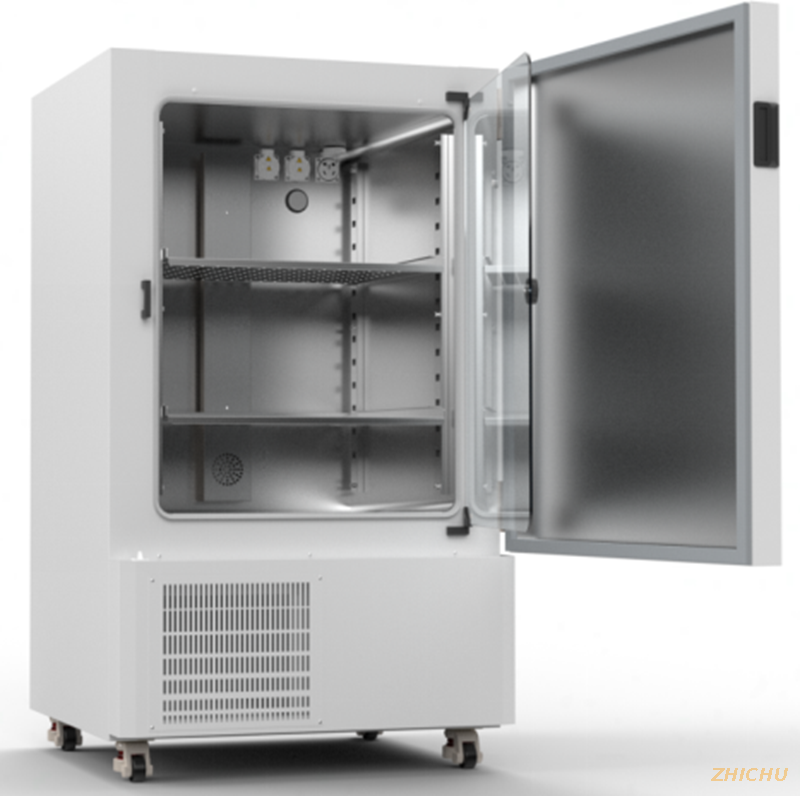

| Number of partition plates |
Standard configured 3 pcs |
Standard configured 4 pcs |
|
Test hole |
Optional (inner diameter 38 mm) |
Optional (inner diameter 38 mm) |
|
Dimension of inner incubator |
≥W540 × D560 × H580mm |
≥W600 × D560 × H900mm |
|
External dimensions |
≤W770 × D775 × H1180mm |
≤W820 × D780 × H1500mm |
|
Cooling and heating methods |
The unique annular heating and cooling technology is adopted |
The unique annular heating and cooling technology is adopted |
|
Other Features |
The automatic defrosting function is provided, and defrosting time, defrosting interval and automatic defrosting ON or not, etc. can be set |
|
|
External cloud platform interface is reserved, and the cloud platform system is optional |
||
|
With data recording function, the recording time can be set, 150000 pieces of data can be recorded, and the temperature curves can be displayed to facilitate data analysis; there is a USB interface to export and save the above data; |
||
|
With over-temperature alarm function and over-temperature automatic heating switching-off function |
||
