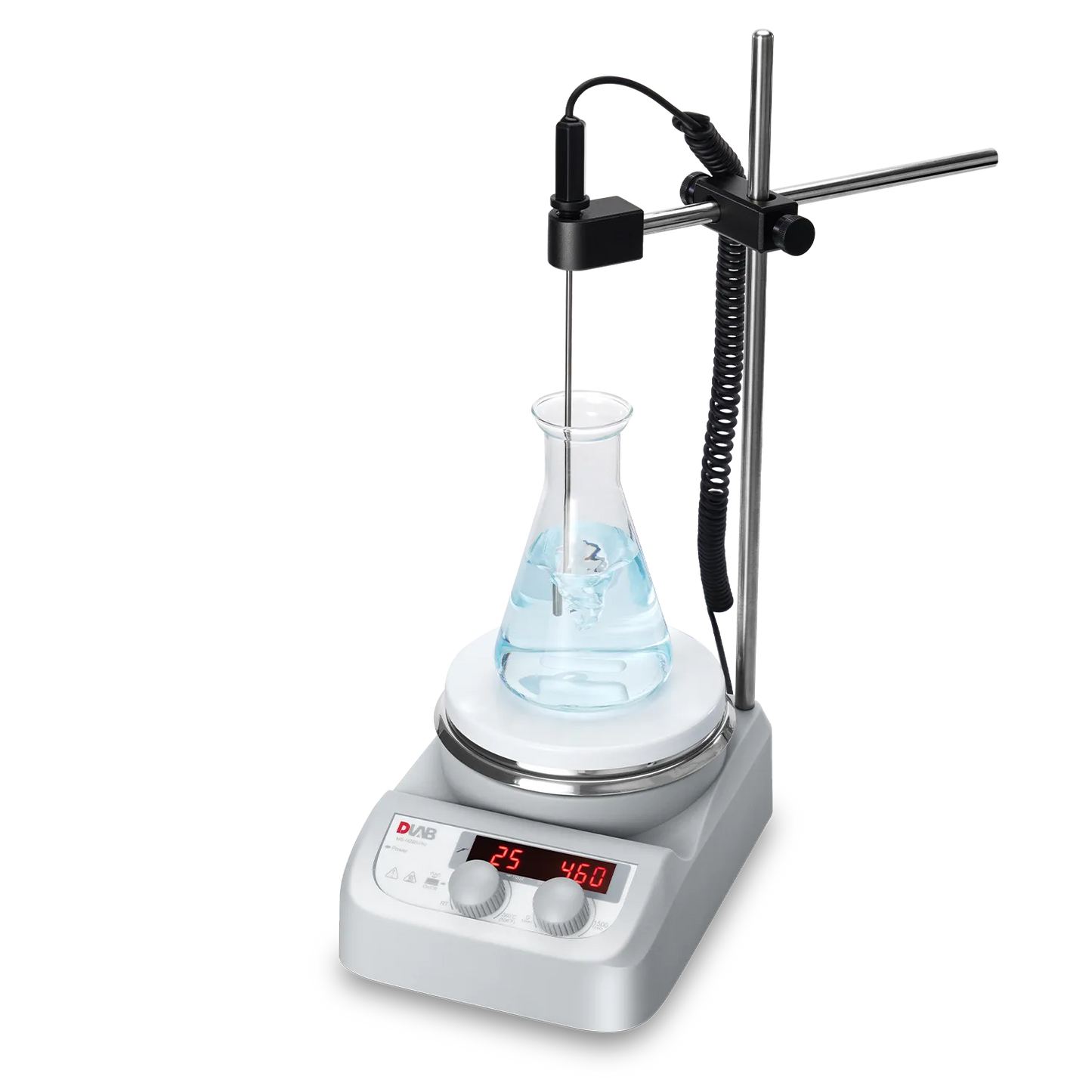

The MS-H280-F1000 LED Digital Magnetic Hotplate Stirrer is a precision-engineered laboratory instrument designed for reliable, efficient, and accurate stirring and heating. With robust digital control, excellent chemical resistance, and a maintenance-free brushless DC motor, it is ideal for research laboratories, academic institutions, and industrial applications where consistency, safety, and performance are essential.
Key Features:
- Digital temperature control with a maximum heating capacity of 280 °C, allowing precise sample heating.
- Digital speed control, adjustable up to 1500 rpm, enabling powerful and stable stirring.
- Durable stainless steel work plate with ceramic coating, providing high chemical resistance and rapid heat transfer.
- External temperature control possible by connecting a PT1000 temperature sensor (accuracy ±0.2 °C).
- Bright LED display shows real-time temperature and stirring speed for easy monitoring.
- Safety-enhancing HOT warning light flashes if the work plate exceeds 50 °C to prevent accidental burns.
- Overheating protection at 320 °C ensures safe operation even during demanding procedures.
Technical Specifications:
- Model: MS-H280-F1000
- Catalog No.: 8017423100
- Work Plate Material: Stainless steel with ceramic coating
- Work Plate Dimension: 135X135 mm (5X5 inch)
- Max. Stirring Capacity: 3 L
- Speed Range: 200-1500 rpm
- Speed Display: LED
- Temperature Display: LED
- Heating Temperature Range: Room temperature-280 °C
- Temperature Control Accuracy: ±1 °C (<100 °C), ±1% (>100 °C)
- External Temperature Sensor: PT1000 (accuracy ±0.2 °C)
- Overheating Temperature Protection: 320 °C
- Max. Magnetic Bar Length: 50 mm
- Motor Type: Brushless DC motor (maintenance-free)
- Stirring Positions: 1
- Motor Rating Output/Input: 3 W / 5 W
- Heating Output: 500 W
- Total Power: 515 W
- Voltage/Frequency 100-120 V, 50/60 Hz
- Dimensions (W X D XH): 150 X260X100 mm
- Weight: 1.8 kg
- Permissible Ambient Temperature: 5-40 °C
- Permissible Ambient Humidity: 80% RH
- Protection Class: IP42
