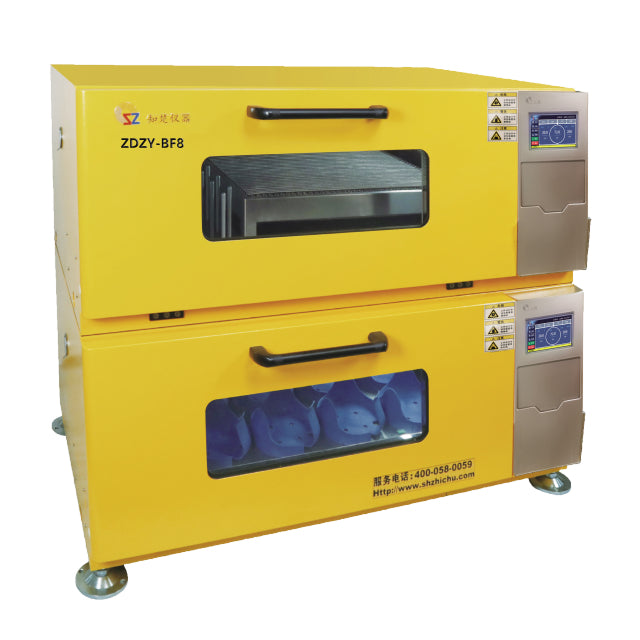

Large Stacked Incubator Shaker

STACKABLE

• Stack up to 2 units high, Space-saving and high-capacity.

• Larger capacity of 2 units for 5L*16 pcs erlenmeyer flask.

• Each machine operates independently.

DRIVE

• Triple-eccentric drive is precisely counterbalanced to impart smooth, uniform motion to all flasks regardless of their position on the platform.

• Servo-motor makes speed control precisely and ensures high-speed performance and stability.

SAFETY

• Audible and Visible Alarms alert the user and shuts off heaters to setpoint deviation.

• Automatic restart after power interrupt with Non-Volatile Memory keeps studies running smoothly.

• The running will stop when the door is open. It is more safe.

CLEAN

• SUS304 stainless steel interior chamber with rounded corners easy to clean and protect bacteria breeding.

• Slide-out platform provide easy access to all samples.

• With UV sterilization.

• The bottom of the chamber can be washed thoroughly. (only model ZDZY-AS8/BS8)

COOLING

• High quality and low noise CFC free compressors ensure refrigeration effect and stable.

• Special refrigerating process control technology with adjustable cooling capacity makes temperature control more accuracy. (only model ZDZY-AS8/BS8)

• Timing frost-removing function, the timing range is 1to 89minutes and the defrost interval is 30-600 minutes adjustable, ensures machine working long time in low temperature without ice block.

Product Name	Stackable Shaking Incubator
Model	ZDZY-AF8(1 unit) ZDZY-BF8(2 units)	ZDZY-AS8(1 unit) ZDZY-BS8(2 units)
Shaking Speed Range	10-300rpm
Shaking Control Accuracy	±1rpm
Orbit (diameter)	φ26mm,  φ50mm(optional)
Temp. Range	4℃～60℃(at 23℃～25 ℃)
Temp. Accuracy	±0.1℃
Temp. Uniformity	≤±0.8℃(at 37℃)		≤±0.5℃(at 37℃)
Inner chamber material	SUS304 Mirror stainless steel
Photosynthesis light bank（option）	Up to 20,000 lux, adjustable 1%~100% with 1% increment
Humidity Control Range（option）	Ambient humidity~95% R.H
Display Screen	7'' LCD Touch Screen
Air circulation	Forced air circulation
Parameter Control	P.I.D Microprocessor
Timer Range	0-999.9 hrs.
Noise Level	<55dB
Power Source	AC220±10% (110V is optional) 50~60Hz
Each Platform Size(W×D,mm)	928*530
Internal effective height	465mm
Each Inner Chamber Capacity	347L		372L
Inner Chamber Dimension (W*D*H,mm)	1010*645*533		1010*650*566
Overall Dimension (W*D*H,mm)	1360*845*730(1 unit) 1360*845*1390(2 units)		1360*845*750(1 unit) 1360*845*1430(2 units)
Net Weight(kg)	210(1 unit) 412(2 units)		218(1 unit) 428(2 units)
