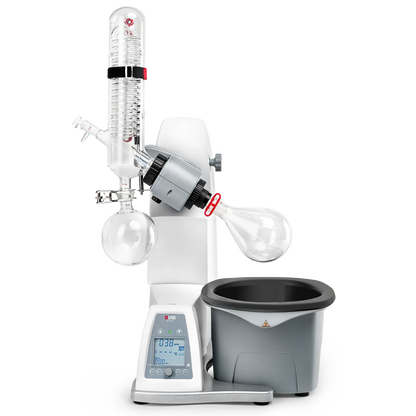

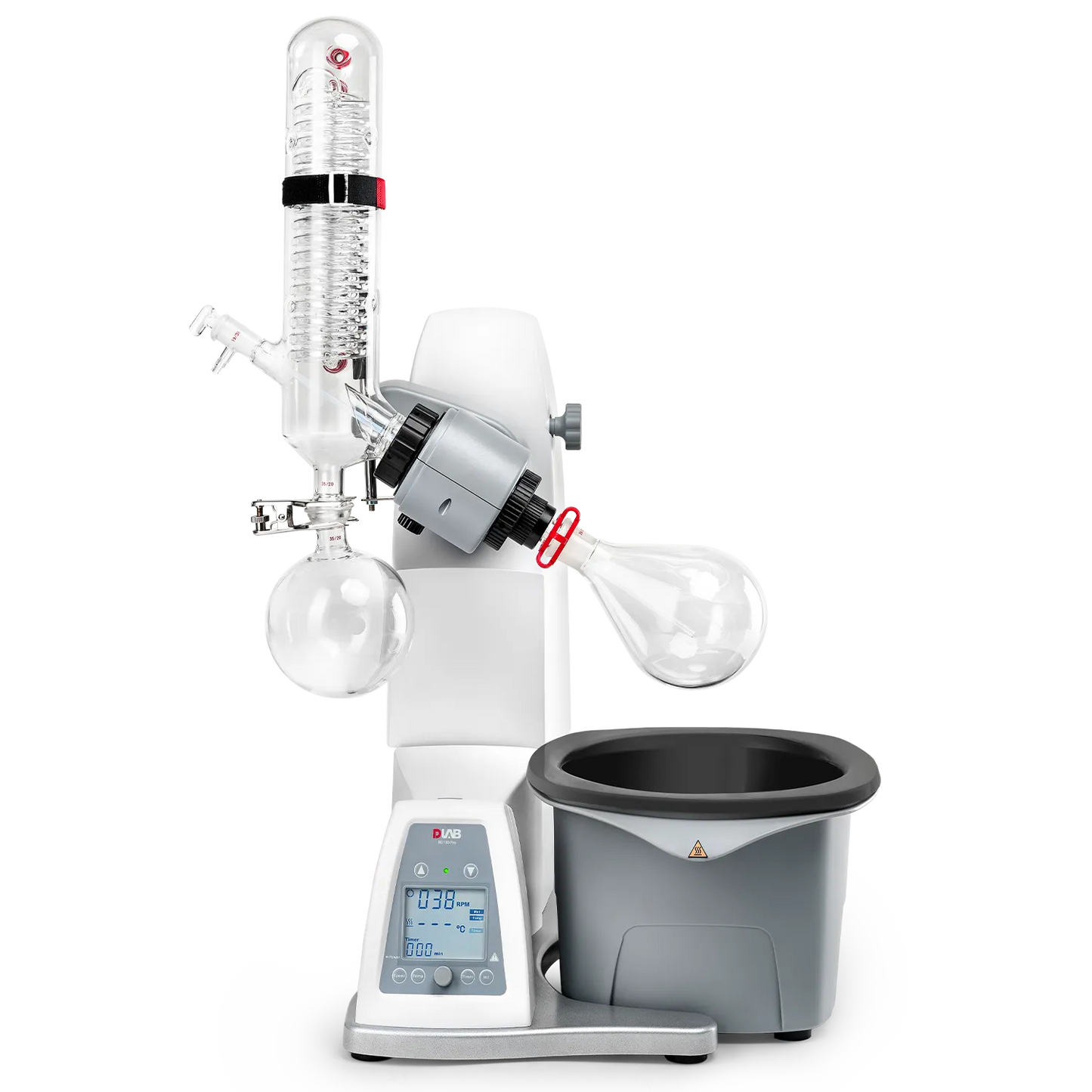

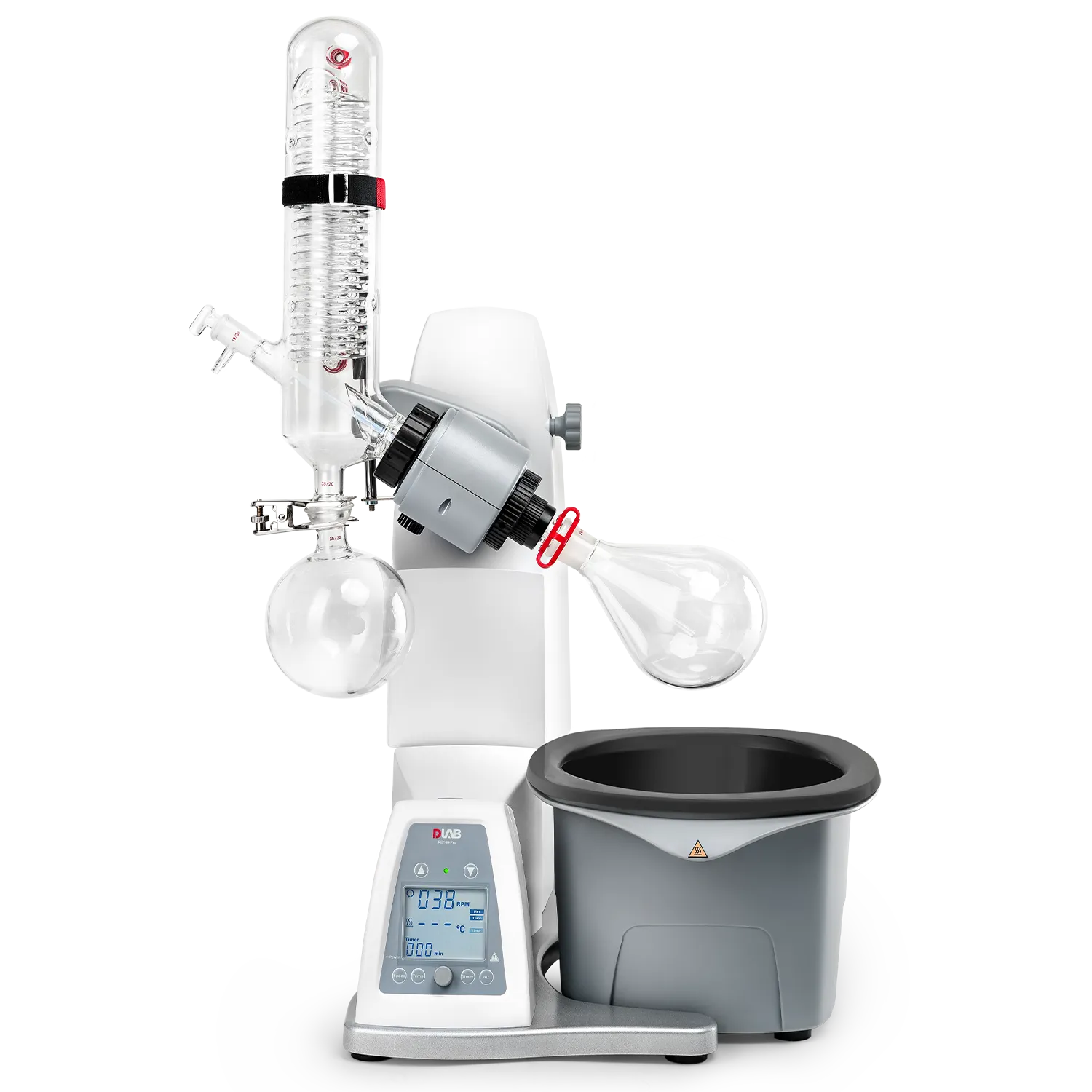

RE100 Series Digital Rotary Evaporators
High-Performance Distillation Solutions for Research and Industry
The RE100 Series Digital Rotary Evaporators are designed to deliver precise, efficient, and safe evaporation, distillation, and chemical separation for laboratories and industrial settings. Suitable for academic research, pharmaceutical production, and chemical processing, this series offers two advanced models tailored to meet different operational needs.
Variants:

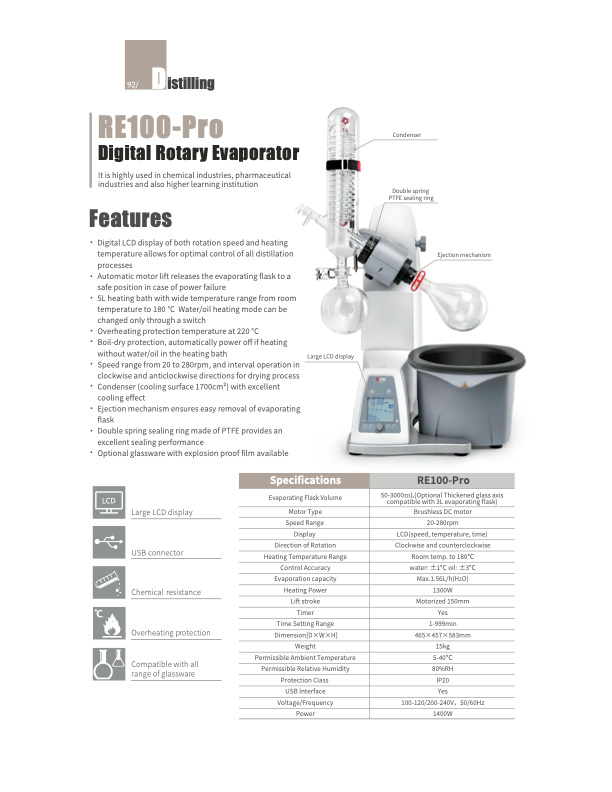

RE100-Pro Digital Rotary Evaporator
- Model: RE100-Pro
- Catalog No.:6030110121+18900173
- Include condenser (cooling surface 1,700 cm²) provides excellent cooling

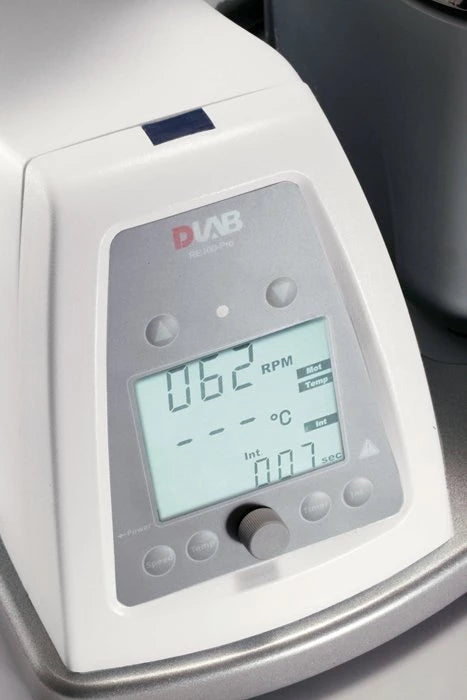

- Large LCD display (speed, temperature, time) with enhanced control
- Motorized lift (up to 150 mm)
- Speed range: 20–280 rpm
- Heating bath temperature: room temp to 180°C
- Evaporation capacity: max. 1.5 L/h (H₂O)
- Heating power: 1300 W
- Additional features: USB connector for data tracking, automatic motor lift for safe flask removal, advanced control accuracy (±1°C water; ±3°C oil)
- Best suited for laboratories and industrial users needing higher throughput, automation, and precision control

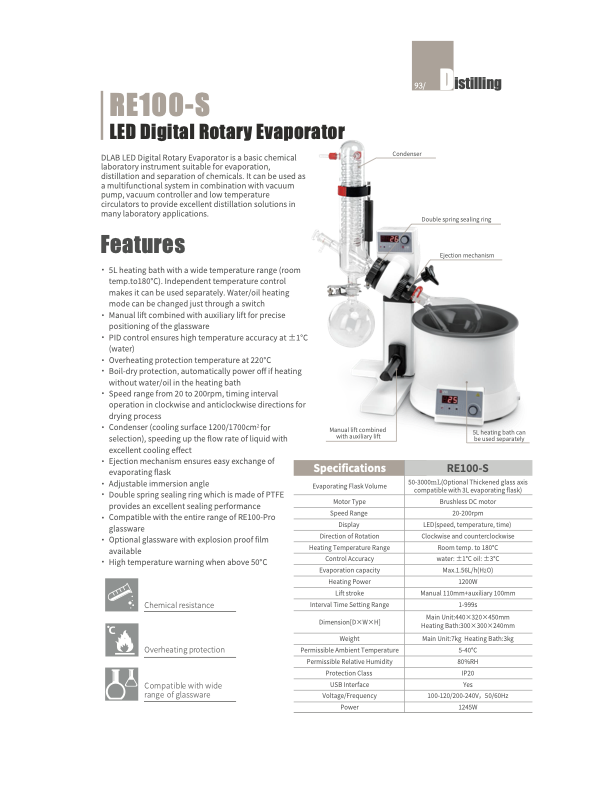

RE100-S LED Digital Rotary Evaporator
- Model: RE100-S
- Catalog No.:6030120220+18900476
- Include condenser (cooling surface 1,500 cm²) provides excellent cooling
- LED display (speed, temperature, time)
- Manual lift with auxiliary adjustment (up to 110 mm)
- Speed range: 20–200 rpm
- Heating bath temperature: room temp to 180°C
- Evaporation capacity: max. 1.5 L/h (H₂O)
- Heating power: 1200 W
- Compact design with essential safety features, including overheat protection (220°C), boil-dry protection, and adjustable immersion angle
- Ideal for laboratories requiring essential, reliable performance with manual operation
RE100-S-H LED Digital Rotary Evaporator
- Model: RE100-S-H
- Catalog No.:6030120220+18900173
- Include condenser (cooling surface 1,700 cm²) provides excellent cooling
- LED display (speed, temperature, time)
- Manual lift with auxiliary adjustment (up to 110 mm)
- Speed range: 20–200 rpm
- Heating bath temperature: room temp to 180°C
- Evaporation capacity: max. 1.5 L/h (H₂O)
- Heating power: 1200 W
- Compact design with essential safety features, including overheat protection (220°C), boil-dry protection, and adjustable immersion angle
- Ideal for laboratories requiring essential, reliable performance with manual operation
Shared Features:
- 5 L heating bath with water/oil mode
- PID temperature control for ±1°C accuracy
- Double spring PTFE sealing ring for excellent sealing
- Ejection mechanism for easy flask exchange
- Overheating protection and boil-dry automatic shutoff
- Optional explosion-proof glassware for enhanced safety
This versatile series ensures robust performance, safety, and adaptability across diverse applications, supporting the needs of scientific research, pharmaceutical development, and chemical industries.
