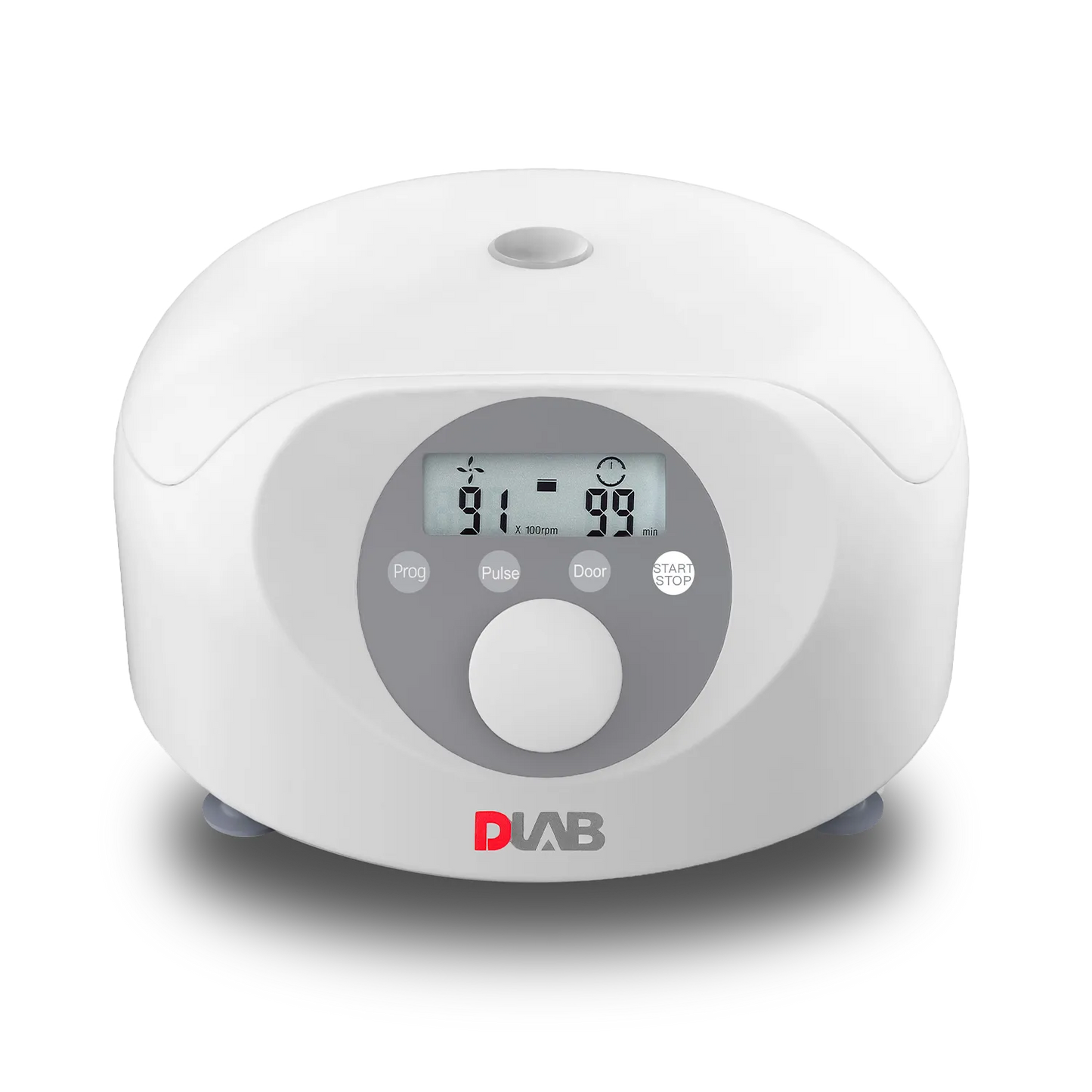

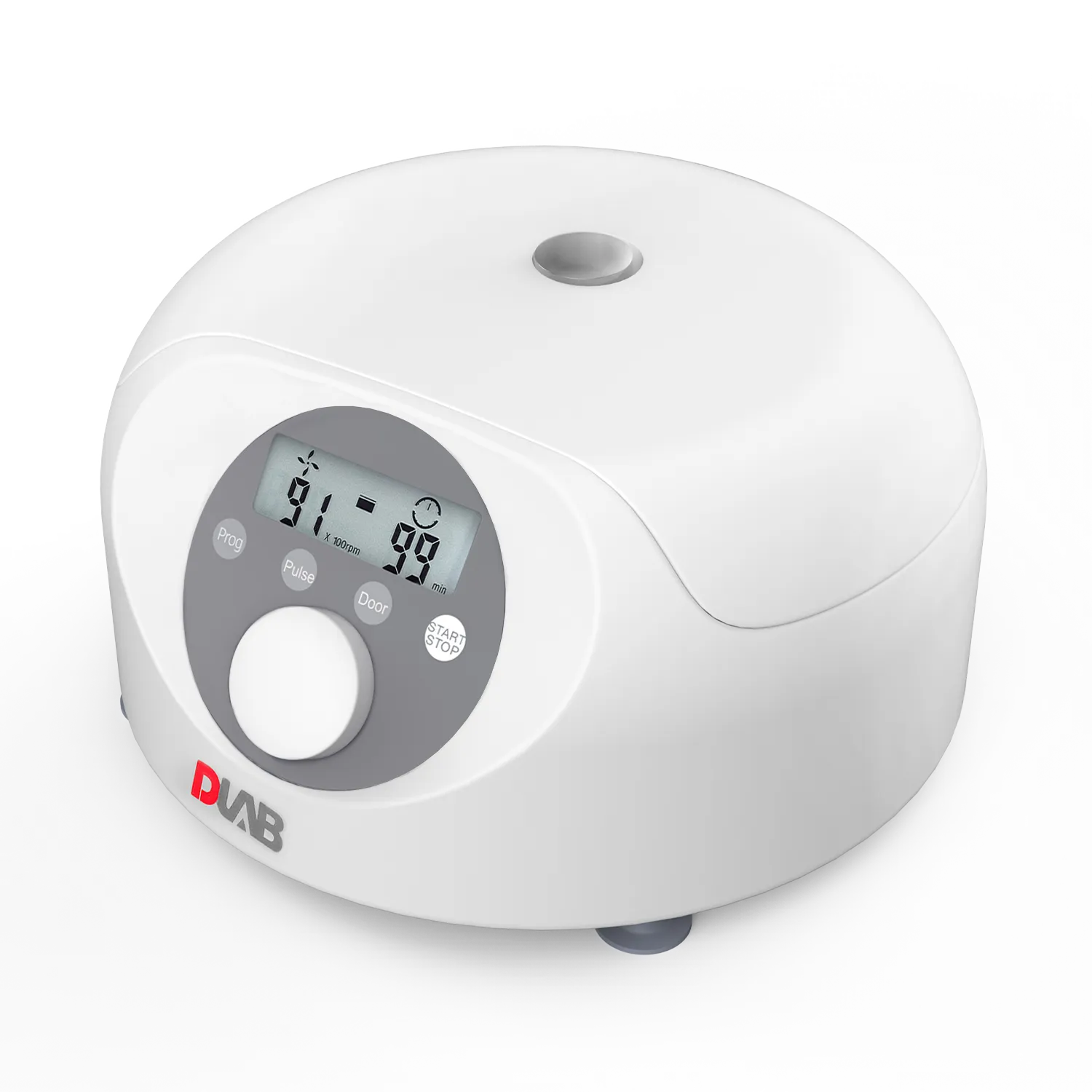

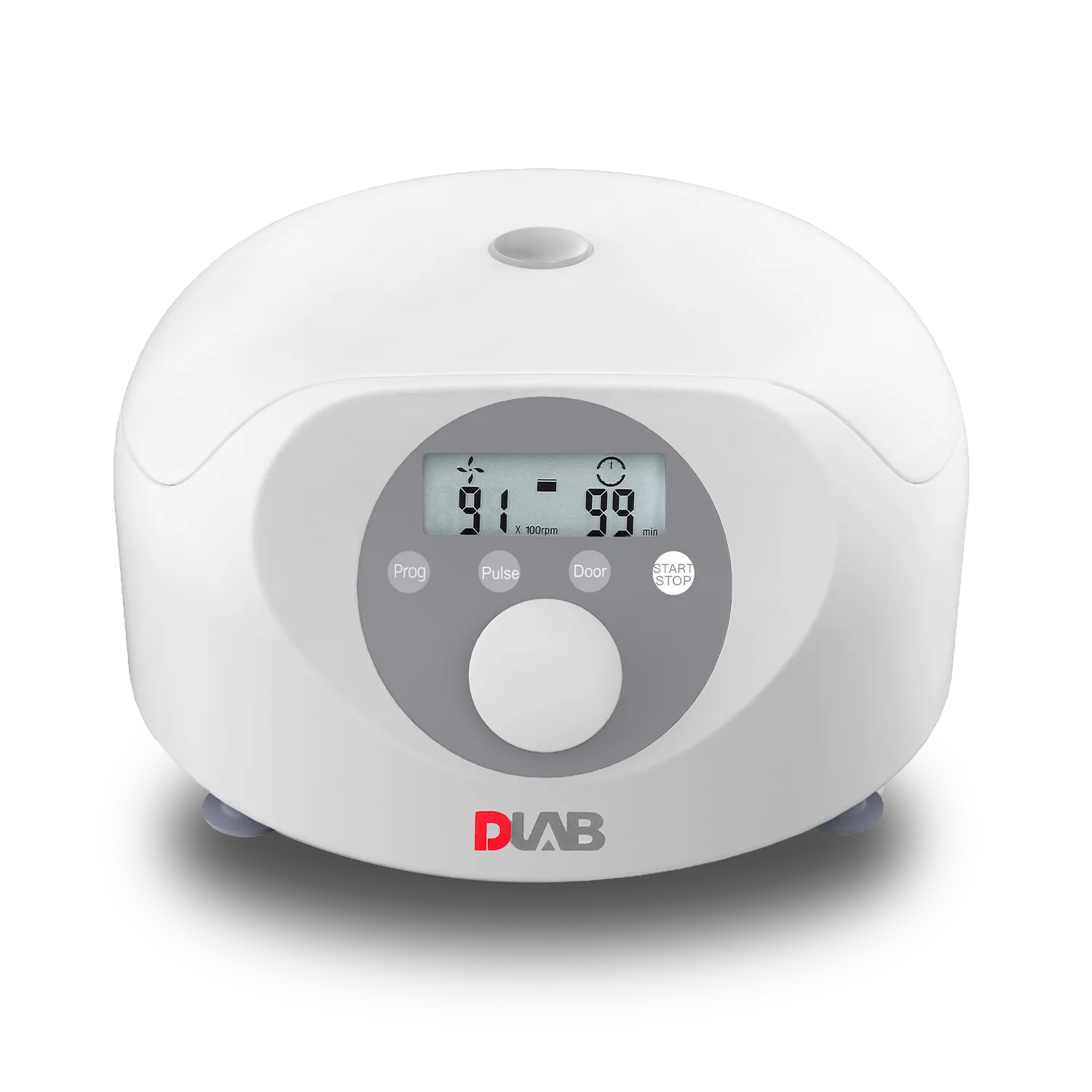

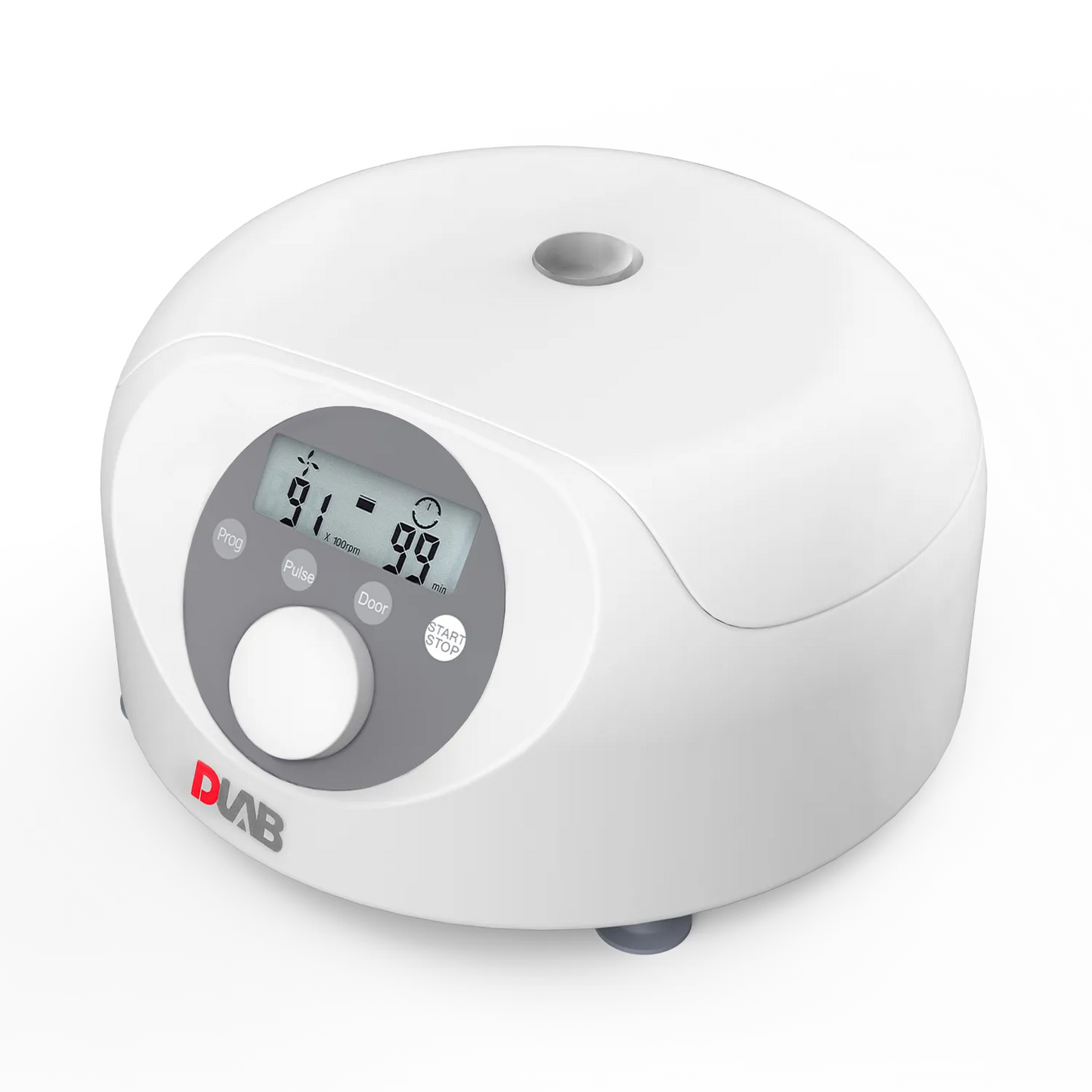

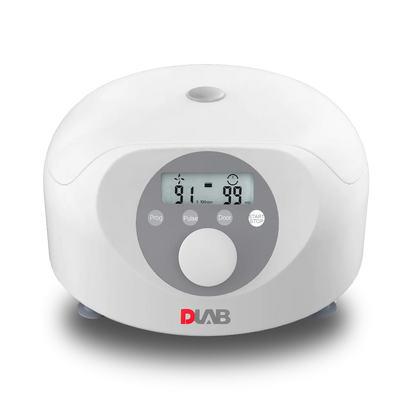

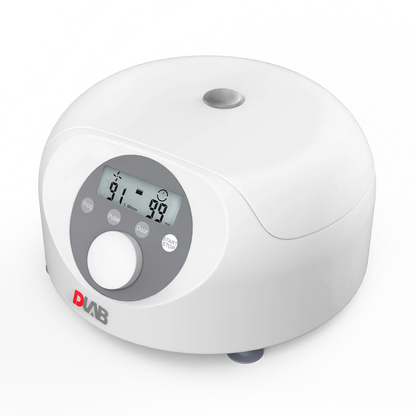

D2012S High-Speed Microcentrifuge
Precise Speed | Pulse Spin | Molecular Lab Essential
The D2012S microcentrifuge is designed for high-speed sample separation in molecular biology, DNA/RNA extraction, and microvolume biochemical analyses. With powerful acceleration, advanced safety features, and ultra-quiet operation, it’s the ideal choice for demanding lab environments.

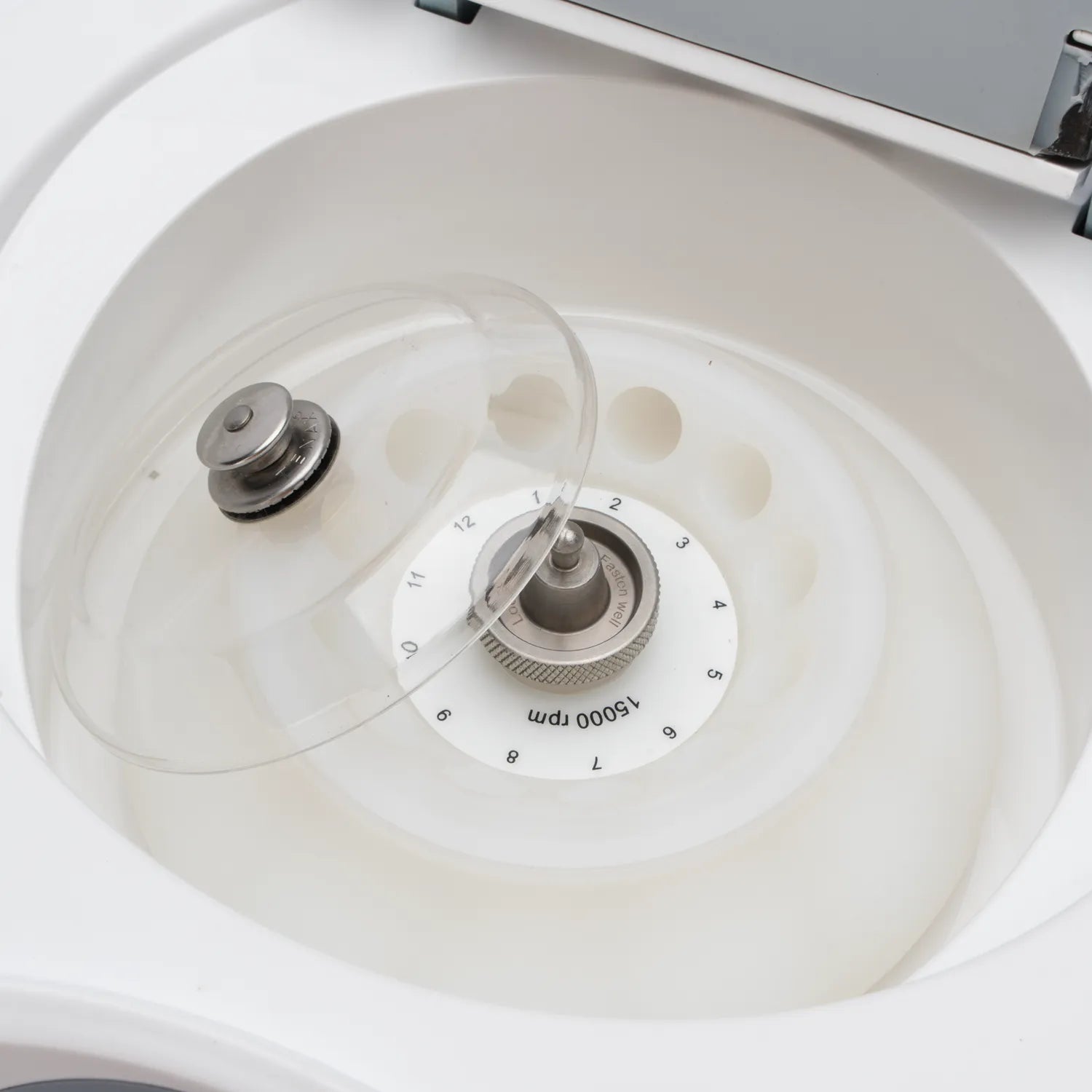

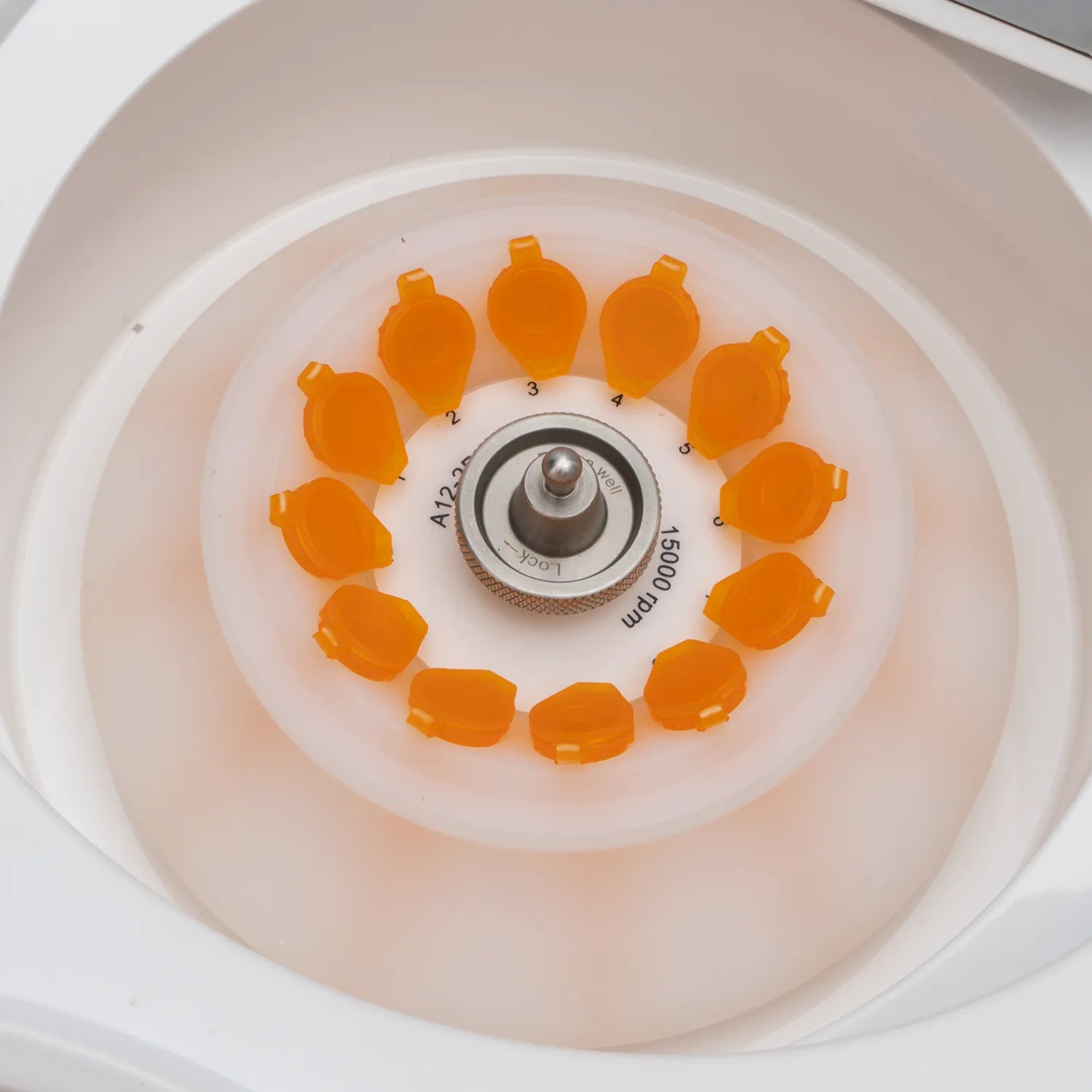

*High Speed Mini Centrifuge (CE marked), with A12-2P plastic rotor kit（select 19400010）(package contain in the box)
Highlighted Features
- Pulse mode for rapid and convenient quick spins
- Speed up to 15,000 rpm (max. RCF: 15,100 × g)
- Brushless DC motor for quick, stable acceleration
- Low noise operation (≤ 65 dB)
- Automatic door lock and over-speed detection for user safety
- Wide voltage compatibility with consistent speed and accuracy
- Speed/RCF switch, short-time run mode, and sound alert functions included
Applications
- Plasmid extraction
- Nucleic acid purification
- DNA/RNA sample processing
- Sedimentation of biological components
- Biochemical and chemical analysis of microsamples
Technical Specifications
| Parameter | Value |
|---|---|
| Max. Speed | 15,000 rpm (adjustable in 100 rpm steps) |
| Max. RCF | 15,100 × g |
| Speed Accuracy | ± 20 rpm |

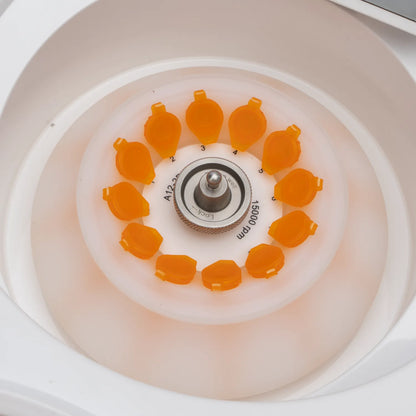

| Rotor Capacity | 0.2 / 0.5 / 1.5 / 2.0 mL × 12 |
| Run Time | 30 sec – 99 min |
| Driving Motor | Brushless DC motor |
| Display | LCD |
| Safety Features | Door lock, over-speed detection, over-temperature protection, internal diagnostics |
| Power Supply | 100–240 V, 50/60 Hz, 70 W |
| Noise Level | ≤ 65 dB |
| Dimensions (DxWxH) | 272 × 260 × 154 mm |
| Weight | 6.2 kg |
Compatible Rotors
- A18-2P (Cat. No. 19400158)
- Capacity: 2.0 / 1.5 / 0.5 / 0.2 mL × 18
- Max. RCF: 16,750 × g
- Material: High-strength nylon
- Adapter options: A02P2, A05P2
- A6-5VP (Cat. No. 19400156)
- Capacity: 6 × 5 mL + 6 × 0.5 mL
- Max. RCF: 16,520 × g
- Material: High-strength nylon
- A4-PCR8 (Cat. No. 19400157)
- Capacity: 4 × 0.2 mL PCR 8-strips
- Max. Speed: 15,000 rpm
- Material: Zircal
