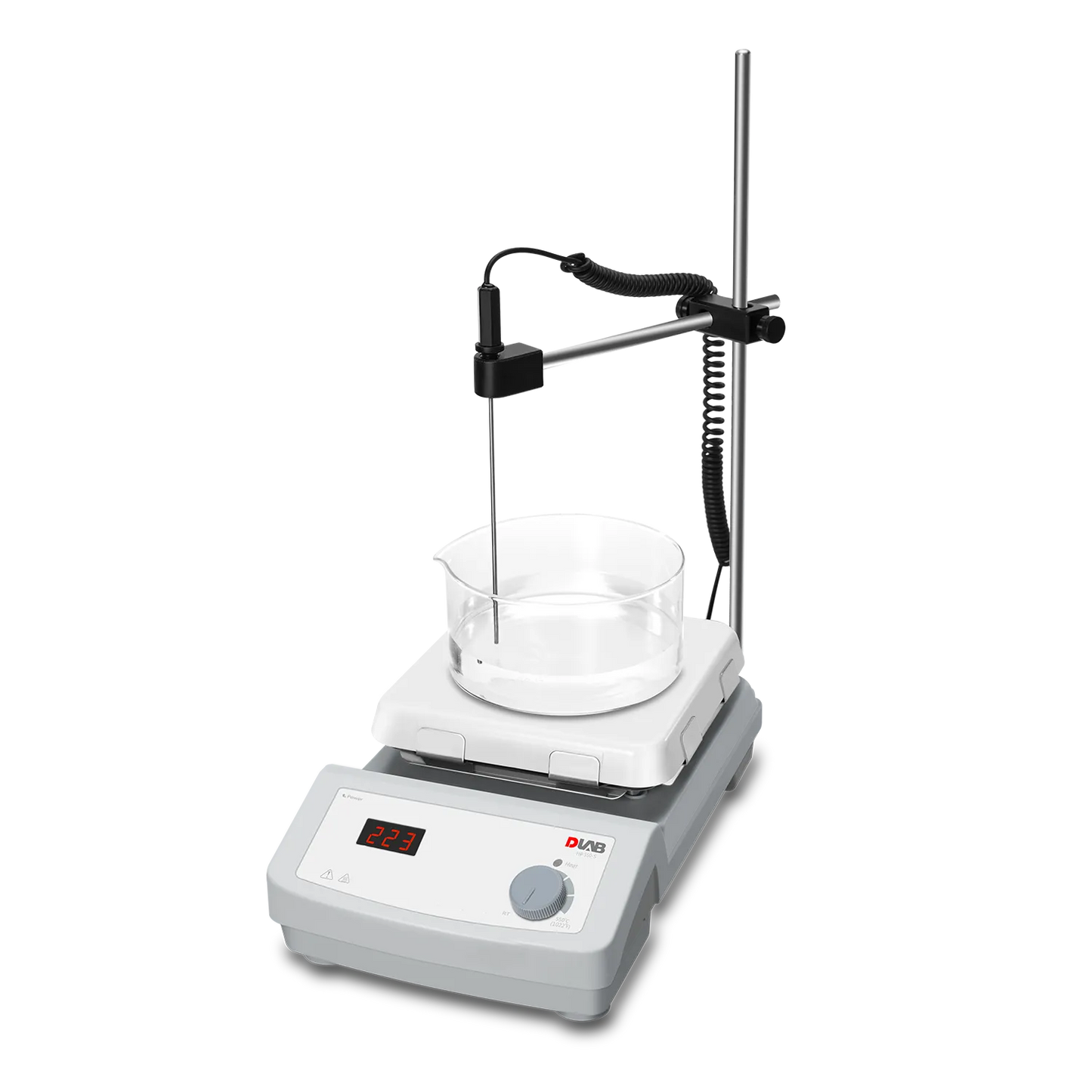

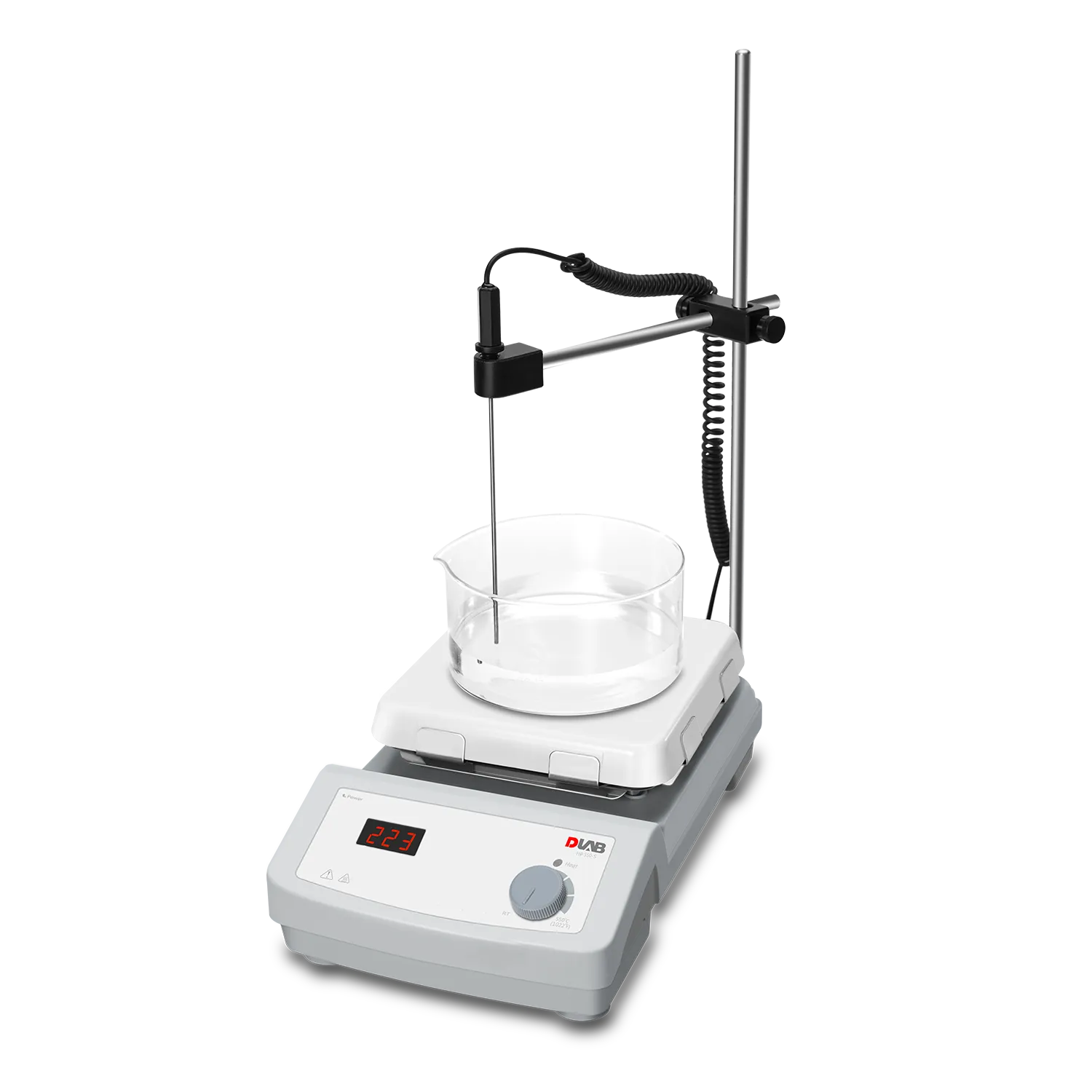

HP550-S Digital Hotplate
Accurate Heating | Durable Glass Ceramic Surface | Safety-Assured Design
The 5031122211 hotplate combines precise temperature control, durable construction, and advanced safety features. It is ideal for laboratories requiring consistent heating for chemical reactions, sample preparation, and general laboratory applications.
Highlighted Features
- Glass-ceramic work plate ensures excellent chemical resistance and easy cleaning
- LED temperature display with ±1°C display accuracy
- External temperature sensor (PT1000) available for precise external control (accuracy ±0.2°C)
- Heating temperature up to 550°C with 5°C increments
- Overheating protection activates at 580°C for added safety
- The "Hot" warning indicator activates when the surface exceeds 50°C
- Wide voltage compatibility for global use
- Compact and robust design for reliable daily operation
- Voltage: 100V-120V/50Hz/60Hz
Technical Specifications:
| Parameter | Value |
|---|---|
| Catalog Number | 5031122211 |
| Work Plate Material | Glass ceramic |
| Work Plate Dimensions | 184 × 184 mm (7 inches) |
| Heating Temperature Range | Room temperature to 550°C (5°C increments) |
| Temperature Display | LED |
| Temperature Control Accuracy | ±10°C |
| Temperature Display Accuracy | ±1°C |
| External Temperature Sensor | PT1000 (accuracy ±0.2°C) |
| Overheating Protection | 580°C |
| Timer Function | No |
| Power Output | 1000 W |
| Heating Output | 1000 W |
| Voltage/Frequency | 100–120V / 200–240V, 50/60Hz |
| Weight | 4.5 kg |
| Protection Class | IP21 |
| Noise Level | Silent Operation |
| Overall Dimensions (WxDxH) | 215 × 360 × 112 mm |
| Permissible Ambient Temp. | 5°C to 40°C |
| Permissible Ambient Humidity | 80% RH |
| Heating Positions | 1 |
