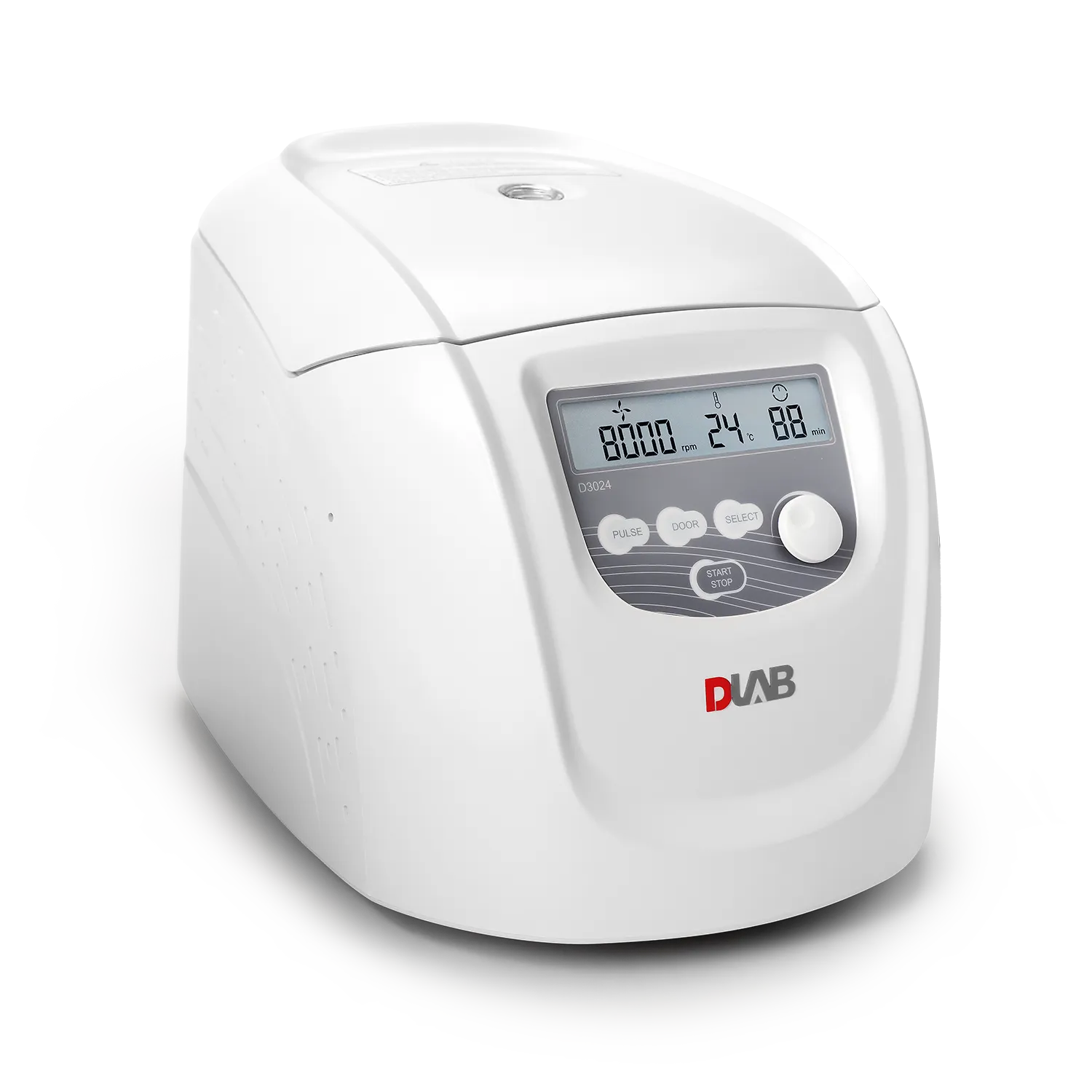

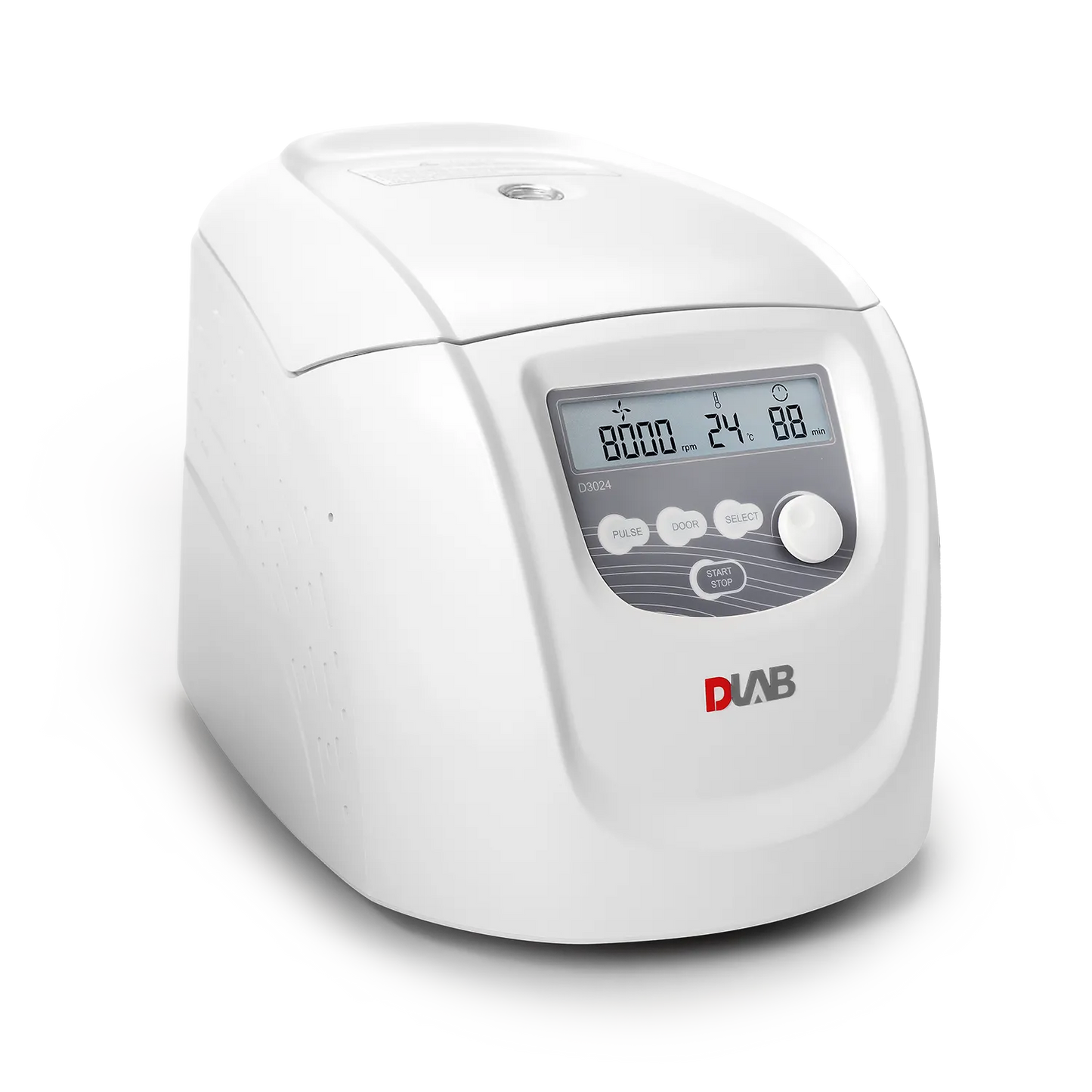

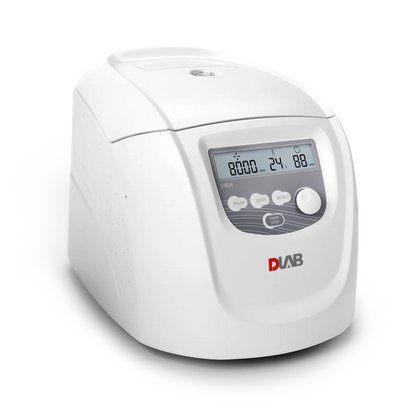

D3024 High-Speed Microcentrifuge
Maximum Speed | Advanced Safety | Rotor Cooling Innovation
The D3024 centrifuge is engineered for high-speed, high-precision microvolume processing, offering fast cooling, robust safety features, and wide rotor compatibility. Ideal for molecular biology, clinical chemistry, and microbiology labs requiring rapid and safe centrifugation of DNA, RNA, or protein samples.
*Include AS24-2 aluminum alloy rotor kit 19400006 (package contain in the box)
Highlighted Features
- Double cooling air system enables fast rotor cooling and minimizes energy use
- Three-layer sealed rotors prevent sample leakage and ensure biosafety
- Brushless DC motor, maintenance-free and long-lasting
- Safety protections include dual door interlock, over-speed & over-temperature detection, and self-diagnostics
- Autoclavable aluminum rotors withstand 121°C steam sterilization under high pressure

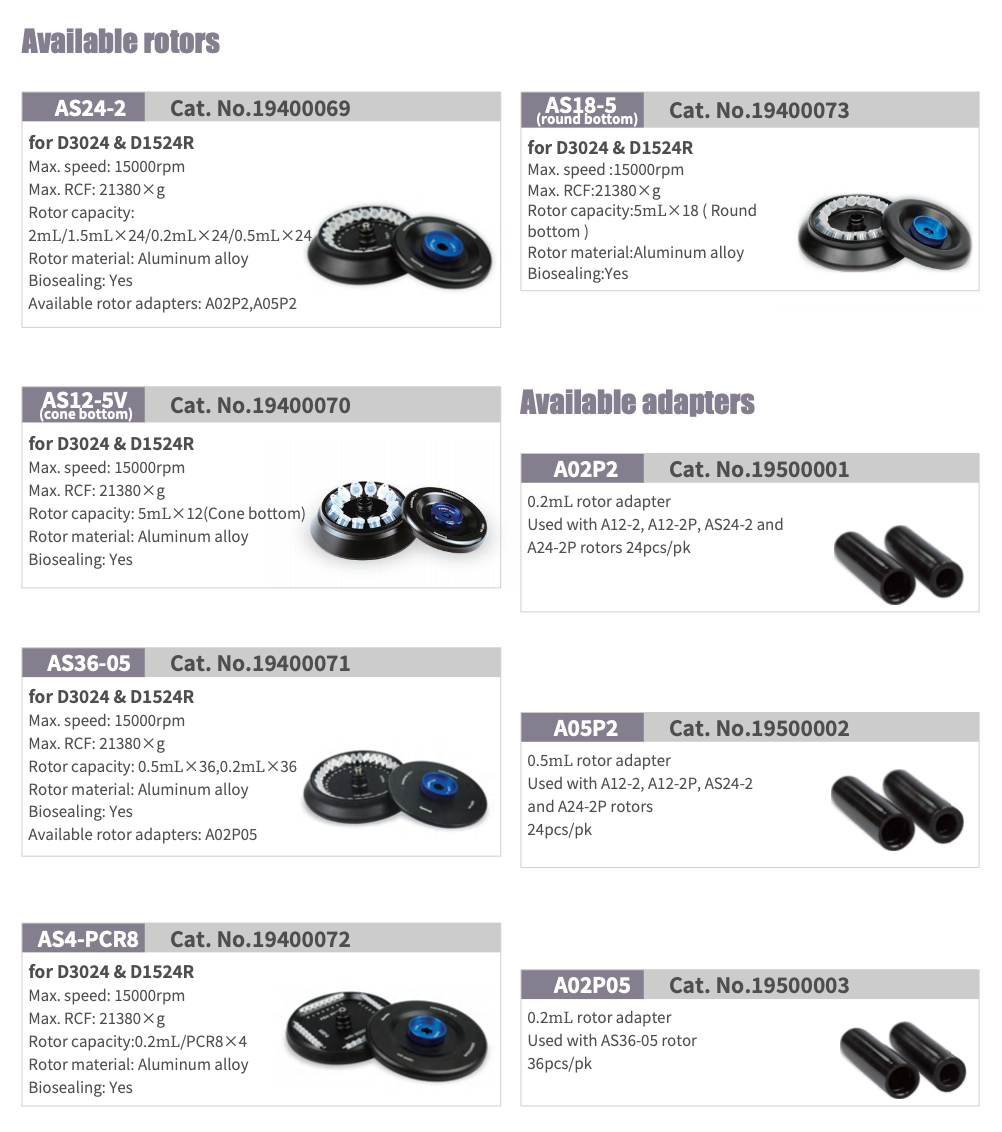

- Five rotor options accommodate 1.5/2.0 mL, 0.5 mL, 0.2 mL, 5 mL tubes, and PCR strips, with adapters available
Applications
- Molecular biology: DNA/RNA isolation, plasmid prep
- Clinical chemistry: microsample analysis
- Protein precipitation and enzymatic reaction sedimentation
- Suitable for clinical, chemical, and life sciences labs
Technical Specifications
| Parameter | Value |
|---|---|
| Max. Speed | 15,000 rpm (adjustable in 10 rpm steps) |
| Max. RCF | 21,380 × g (increments of 10 × g) |
| Speed Accuracy | ±20 rpm |
| Rotor Capacity | 1.5/2.0 mL × 24 0.2/0.5 mL × 36 PCR-8 strips × 4 5 mL × 12 5 mL × 18 |
| Run Time | 30 sec – 99 min / Continuous |
| Accel/Brake Time | 25 s ↑ / 25 s ↓ |
| Motor | Brushless DC motor |
| Safety Devices | Door interlock, over-speed detection, over-temp detection, self-diagnostics |
| Power Supply | AC 200V–400V (5A), or 100V–120V (8A), 50/60 Hz, 200 W |
| Noise Level | ≤64 dB |
| Dimensions (WxDxH) | 280 × 364 × 266 mm |
| Weight | 12 kg |
| Other Functions | Speed/RCF switch, short-time run mode, sound alert |

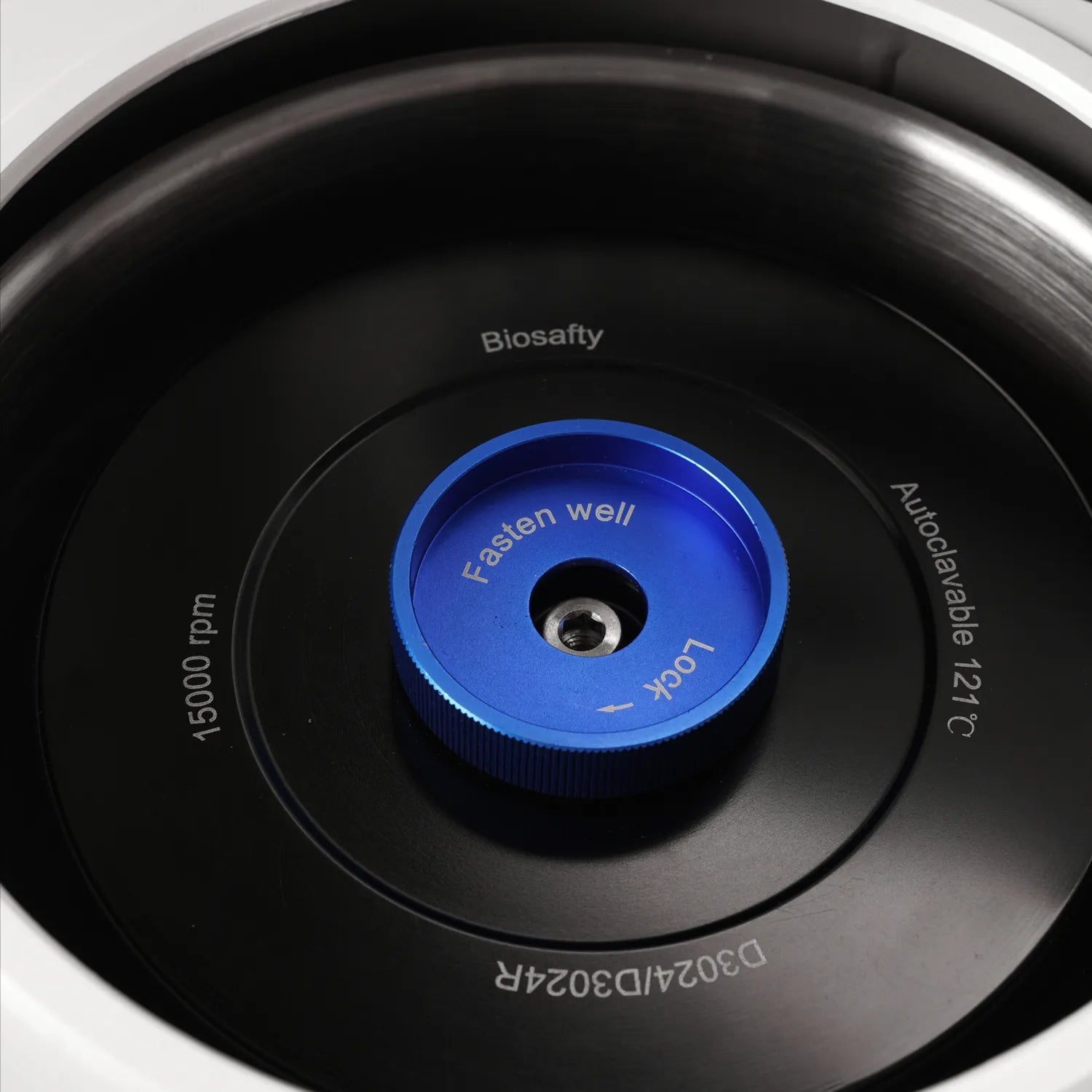

Rotor Design Highlights
- Autoclavable Rotors: High-strength aluminum, steam-sterilizable at 121°C for 20 minutes
- Three-Layer Seal: Each rotor sealed with 3 rubber rings to prevent leakage
- Mechanical Safety: Built to MCA standard IEC/EN61010-2-20
- Enhanced Cooling: Keeps rotor at 10°C after one hour of use
