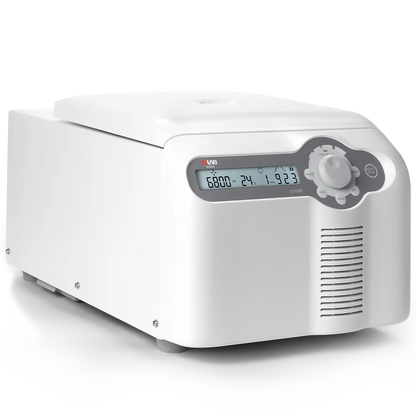

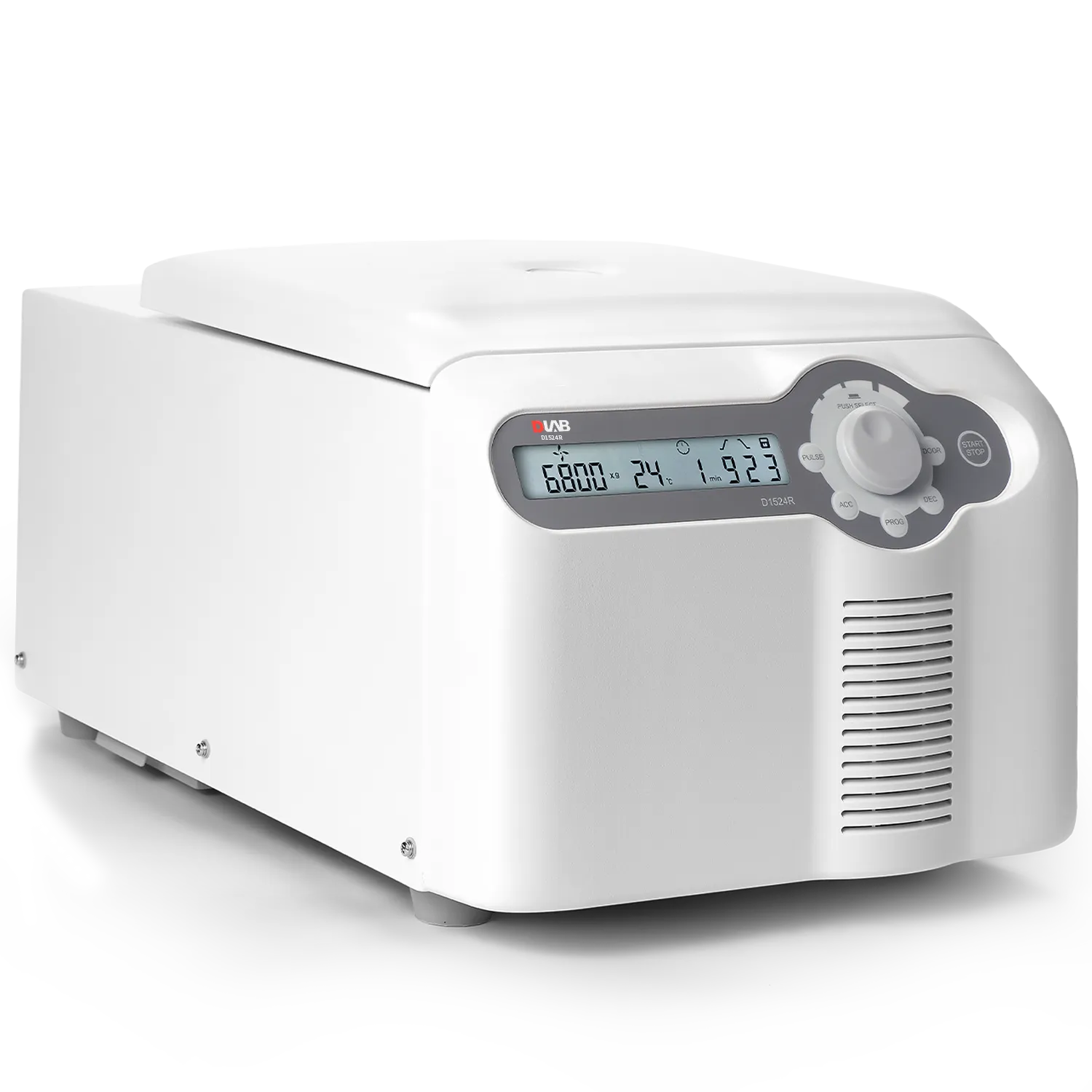

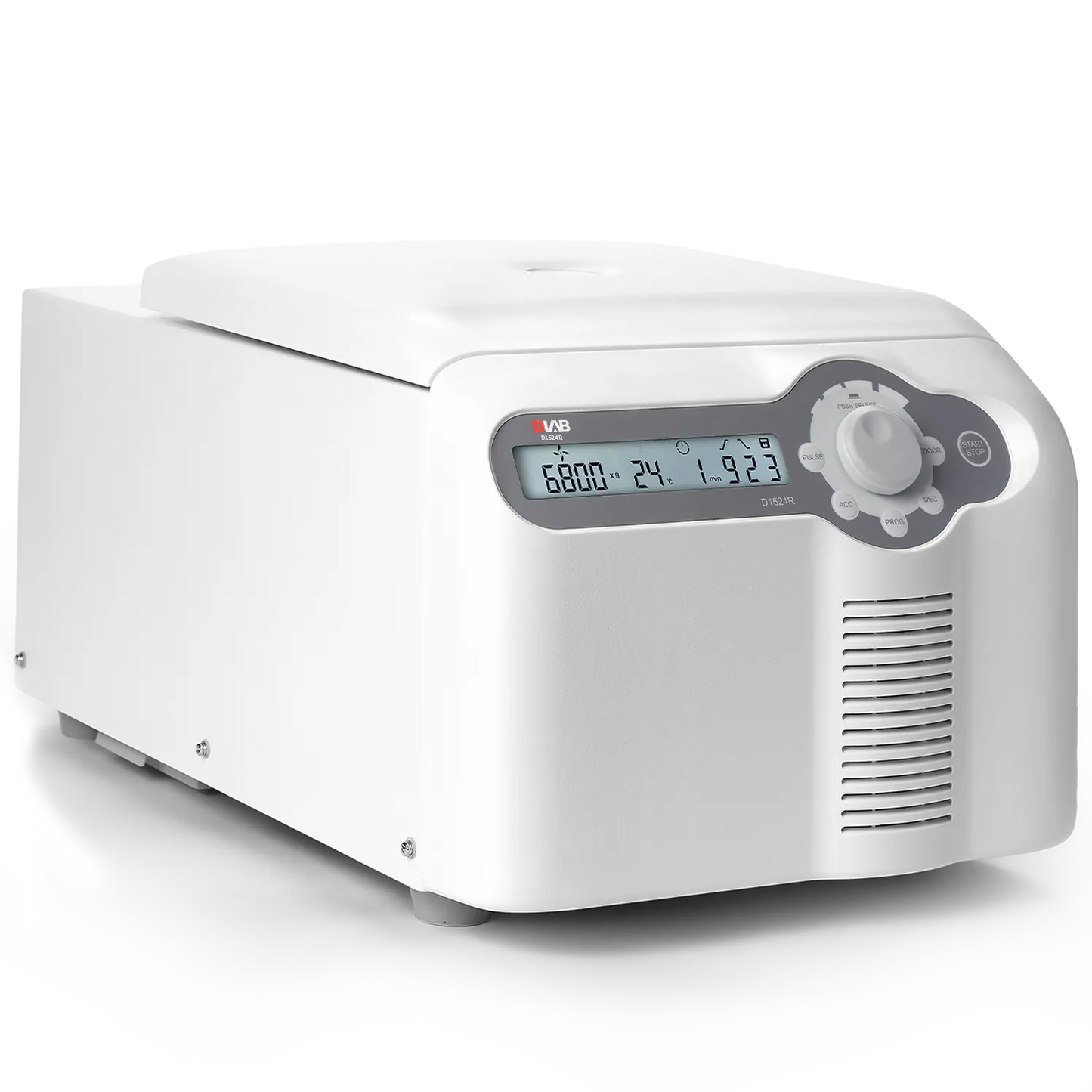

D1524R High-Speed Refrigerated Centrifuge
Powerful Cooling | Precision Control | Advanced Safety
The D1524R is a compact yet high-performance refrigerated centrifuge designed for routine laboratory applications requiring precise temperature control and high-speed separation. With versatile rotor compatibility and robust safety features, with automatic chamber lock, customizable programs, adjustable acceleration/deceleration and other upgrades.
Key Features:
- Electronic magnetic door lock for easy one-hand closure
- Precooling time from room temperature to 4°C in just 7 minutes
- 9-level adjustable acceleration/deceleration for optimized separation
- Up to 9 program memory settings
- External condensation tank prevents water accumulation inside the chamber

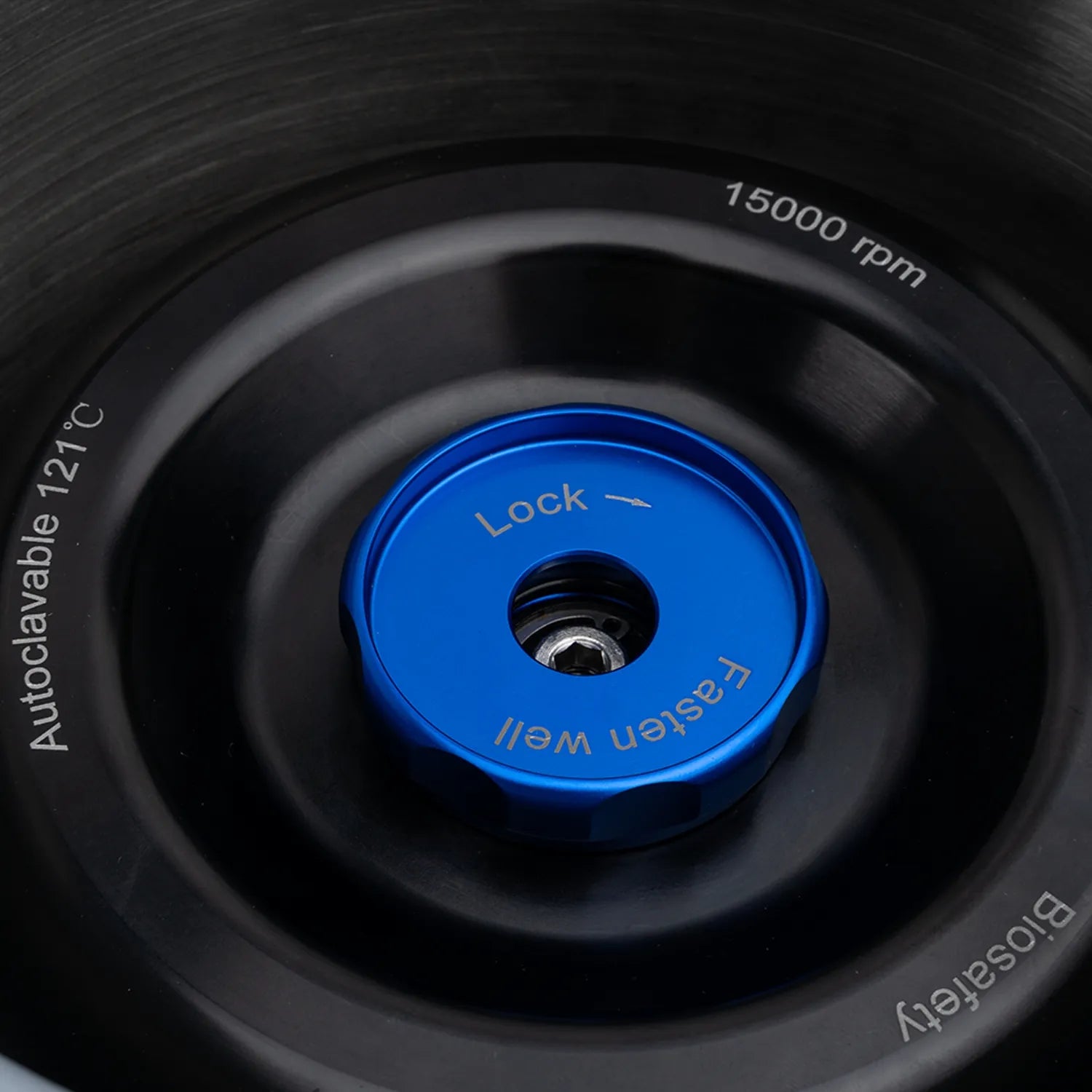

- 3-layer sealed rotors for enhanced bio-safety
- High-strength aluminum alloy rotors, fully autoclavable at 121°C
- Rotor imbalance detection with automatic stop
- Sound alert upon run completion
- Inching operation and real-time run progress display
Technical Specifications
- Model: D1524R
- Catalog No: 9013111121
- Speed Range: 200–15,000 rpm (adjustable in 100 rpm increments)
- Max. RCF: 21,380 × g (step: 10 × g)
- Speed Accuracy: ±10 rpm
- Acceleration/Braking Time: 25 s ↑ / 25 s ↓
- Run Time: 30 sec – 99 min; HOLD (continuous run)
- Temperature Range: -20°C to 40°C
- Temperature Control: Precooling function activates automatically when set temperature is below ambient
- Noise Level: ≤ 56 dB
- Power Supply: 500W, Single-phase 100–120V / 200–240V, 50/60 Hz
- Motor Type: Brushless DC motor
- Display: LCD screen
- Dimensions (WxDxH): 332 × 553 × 283 mm
- Weight: 30 kg
Rotor Capacity Options

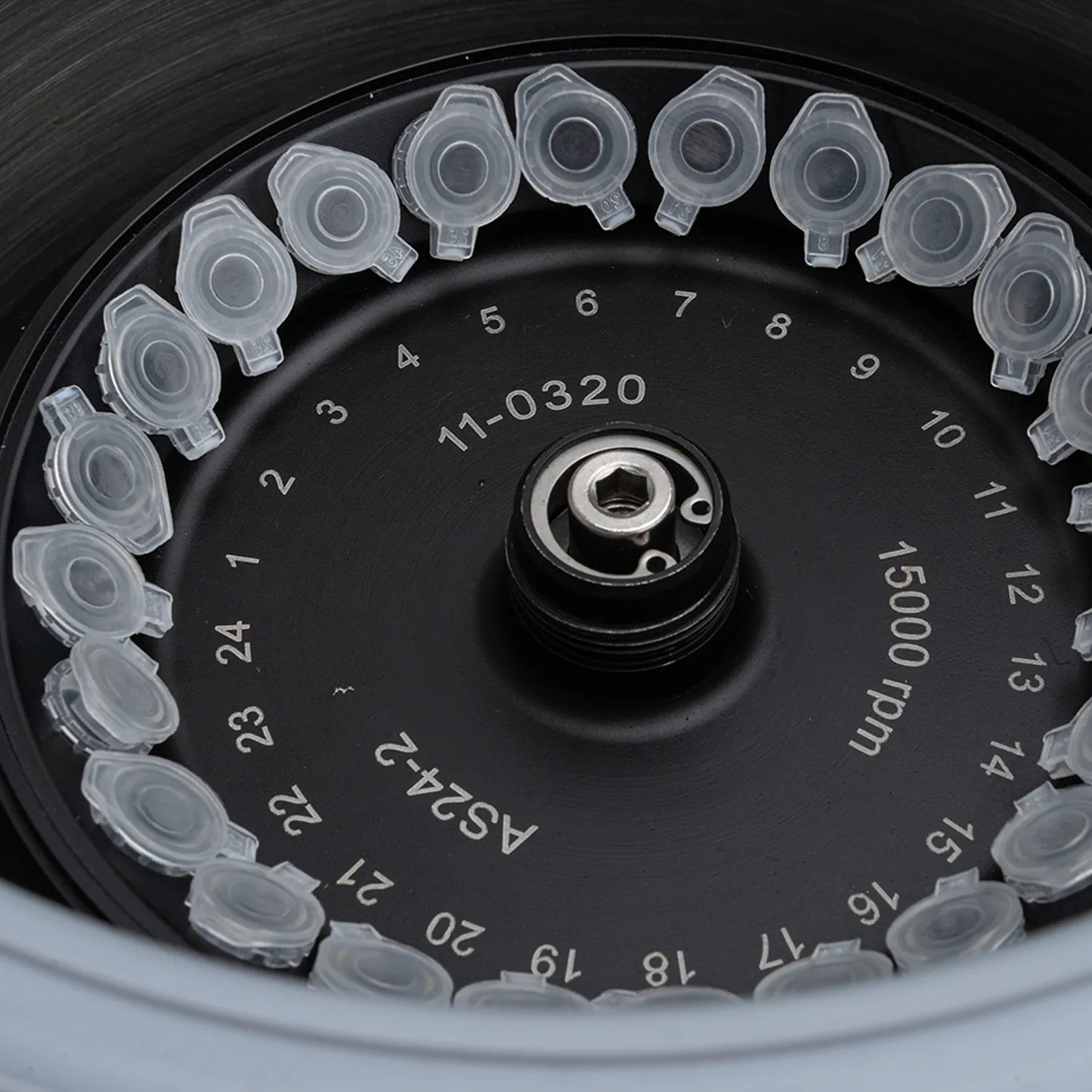

- 1.5 / 2.0 mL × 24
- 0.2 / 0.5 mL × 36
- PCR-8 strips × 4
- 5 mL × 12
- 5 mL × 18
