DRIVE
-
Triple-eccentric drive is precisely counterbalanced to impart smooth, uniform motion to all flasks regardless of their position on the platform.
-
Servo-motor makes speed control precisely and ensures high-speed performance and stability.
SAFETY
-
Audible and Visible Alarms alert the user and shuts off heaters to setpoint deviation.
-
Automatic restart after power interrupt with Non-Volatile Memory keeps studies running smoothly.
-
The running will stop when the door is open. It is more safe. (except model ZHTY-50)
CLEAN
-

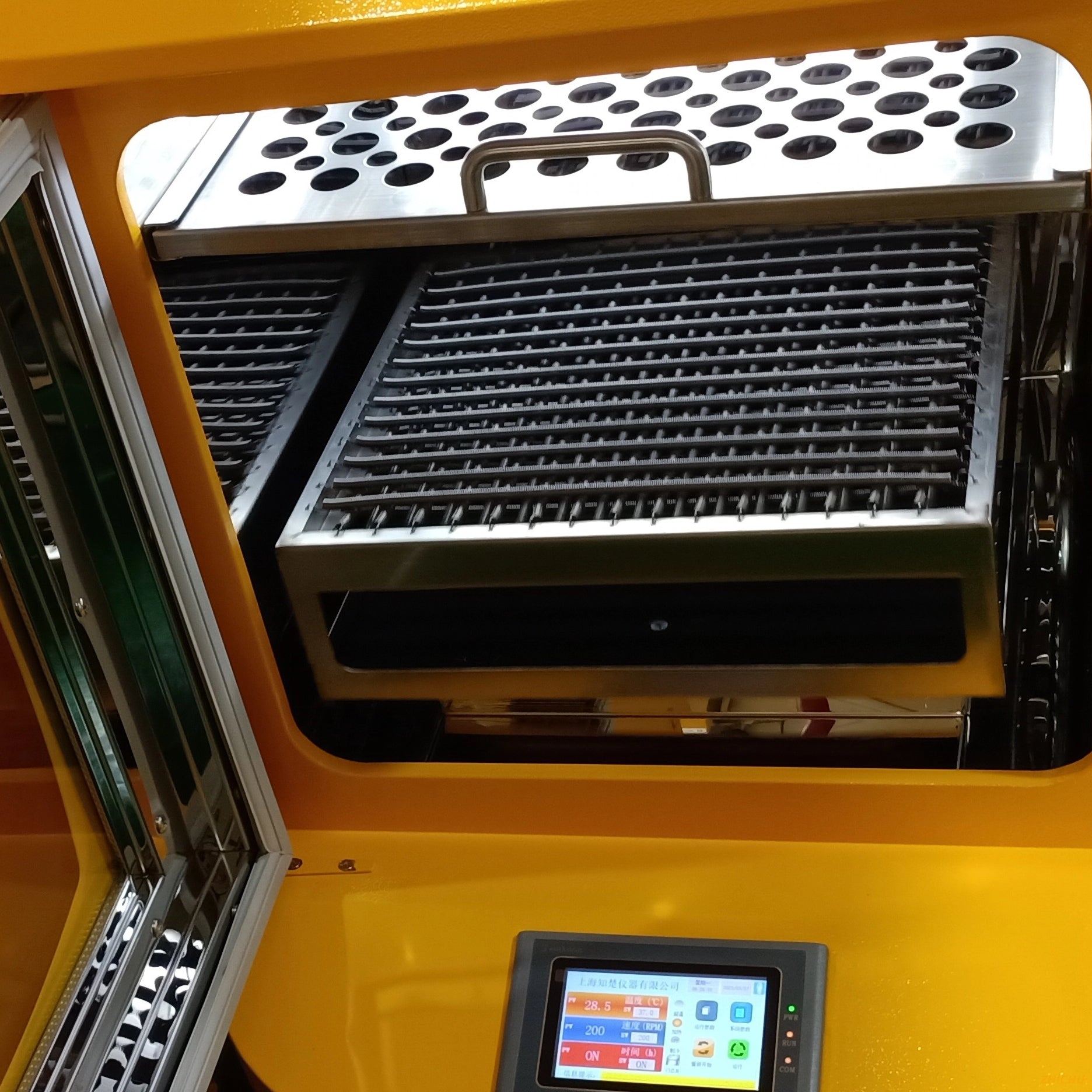

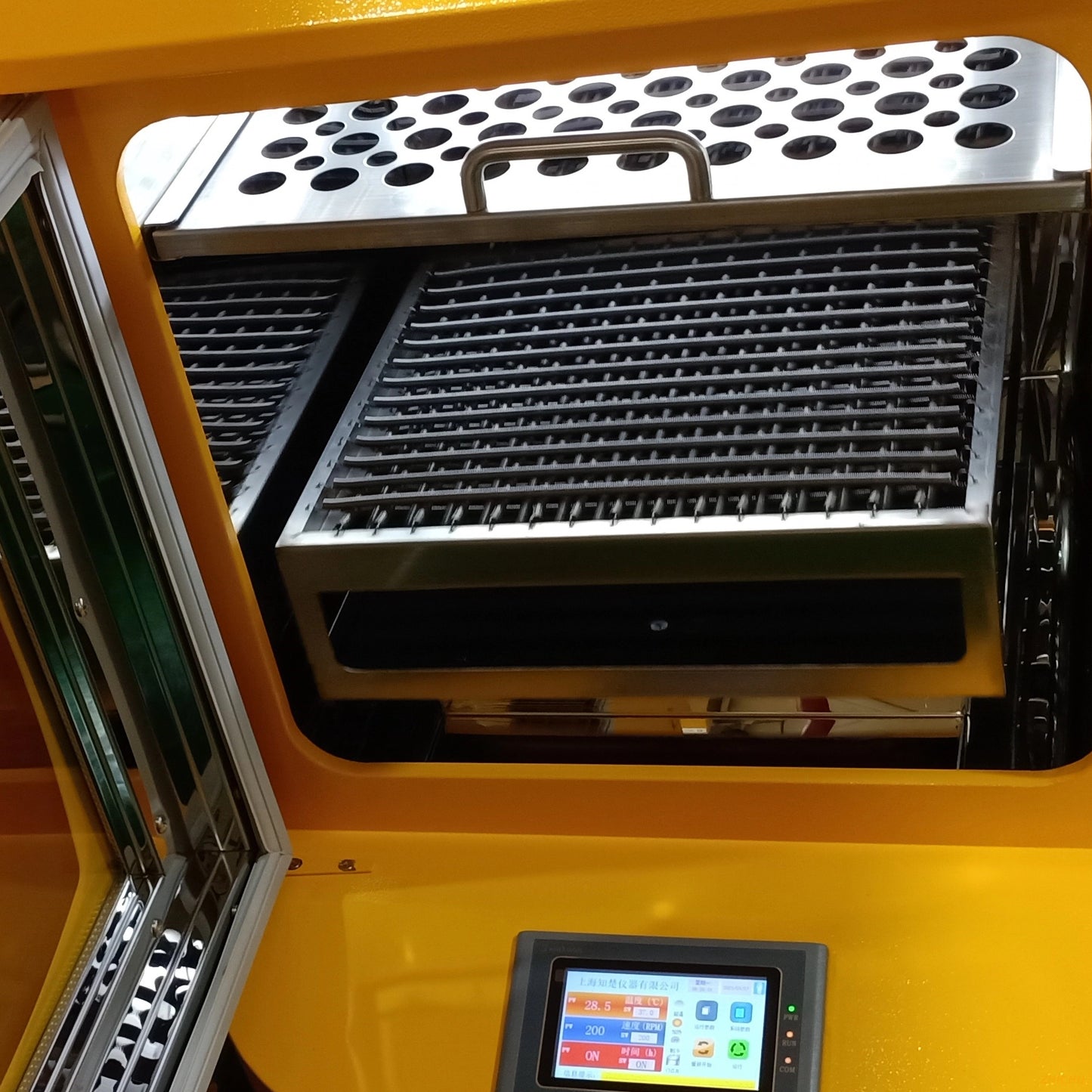

SUS304 stainless steel interior chamber and shaking tray.
-
With UV sterilization.( except model ZHTY-50)
COOLING (Q series)
-
High quality and low noise CFC free compressors ensure refrigeration effect and stable.
-
Timing frost-removing function, the timing range is 1to 89minutes and the defrost interval is 30-600 minutes adjustable, ensures machine working long time in low temperature without ice block.
Product Name |
Benchtop Shaking Incubator |
|||||
Model |

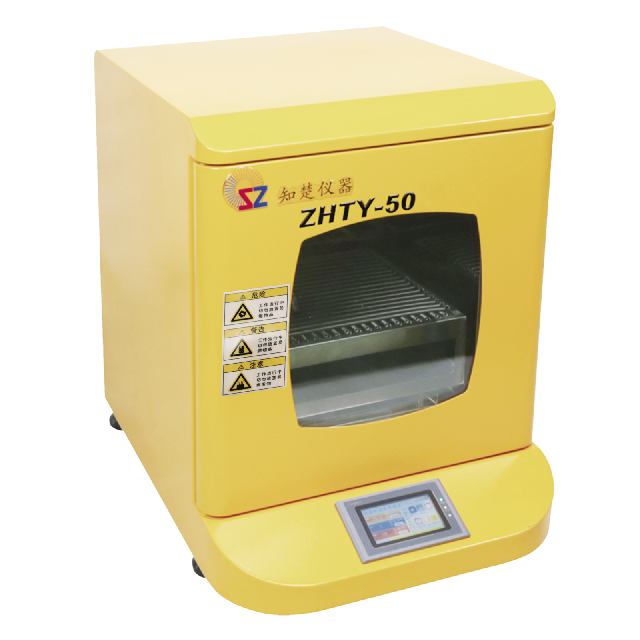

ZHTY-50 |
ZQTY-50 |

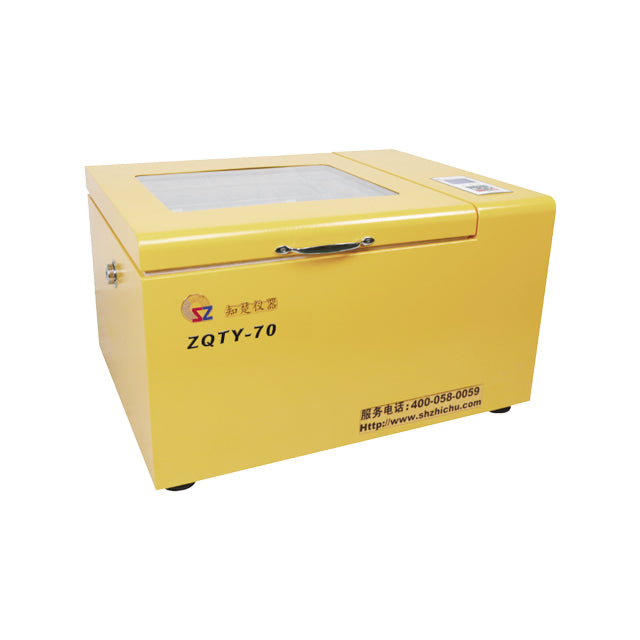

ZHTY-70 ZQTY-70 |

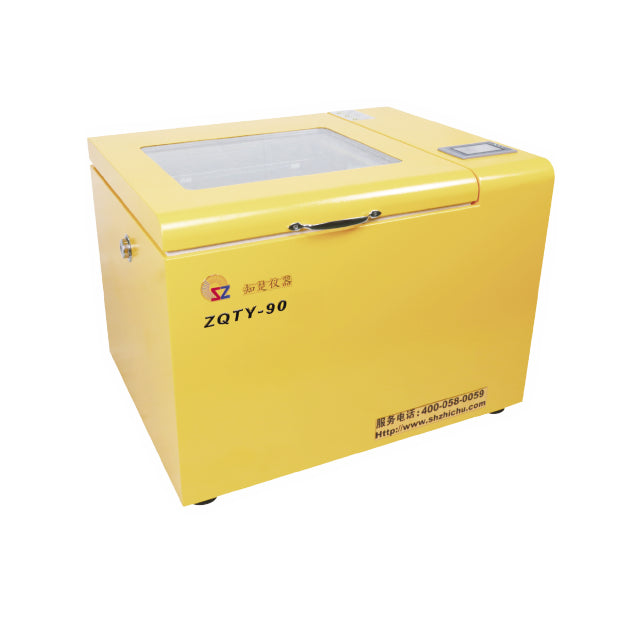

ZHTY-90 ZQTY-90 |
ZHTY-90X ZQTY-90X |
|
Shaking Speed Range |
10-300 rpm |
10-400 rpm |
10-200 rpm |
|||
Shaking Control Accuracy |
±1rpm |
|||||
Orbit (diameter) |
φ26mm |
NA |
||||
Temp. Range |
R.T.+5℃~60℃ |
Cooling 4℃~60℃ (at 23℃~25 ℃) |
R. T.+5℃~60℃(H series) Cooling 4℃~60℃(at 23℃~25 ℃)(Q series) |
|||
Temp. Accuracy |
±0.1℃ |
|||||
Temp. Uniformity |
±1℃(at 37℃) |
|||||
Interior Material |
Mirror SUS304 Stainless Steel |
|||||
Display |
4.3'' LCD touch screen |
LCD screen with button |
4.3'' LCD touch screen |
|||
Air circulation |
Forced air circulation |
|||||
Parameter Control |
P.I.D Microprocessor |
|||||
Timer Range |
0-999.9 hrs. |
|||||
UV light |
NA |
Built in |
||||
Noise Level |
<55dB |
|||||
Power Source |
AC220±10% (110V is optional) 50~60Hz |
|||||
Each Platform Size (W×D, mm) |
344*307 |
420*348 |
518*424 |
NA |
||
Internal effective height |
342mm |
252mm |
320mm |
430mm |
NA |
|
Each Inner Chamber Capacity |
54L |
50L |
78L |
116L |
NA |
|
Overall Dimension (W*D*H,mm) |
650*480*620 |
740*565*510 |
860*670*550 |
860*665*685 |
860*665*640 |
|
Net Weight(kg) |
64 |
89 |
102 (ZHTY-70) 118(ZQTY-70) |
112 (ZHTY-90) 128(ZQTY-90) |
112 (ZHTY-90X) 128(ZQTY-90X) |
Model |
ZHTY-50 |
ZQTY-50 |
ZHTY-70 ZQTY-70 |
ZHTY-90 ZQTY-90 |
ZHTY-90X ZQTY-90X |
||
Microplate holder (four spaces) |
- |
2 |
3 |
3 |
- |
||
Test tube rack |
2 |
2 |
4 |
4 |
- |
||
Erlenmeyer Flask |
50ml |
Stainless steel |
30 |
42 |
63 |
63 |
- |
100ml |
Stainless steel |
20 |
30 |
42 |
42 |
- |
|
Plastic |
16 |
20 |
42 |
42 |
- |
||
125ml |
Stainless steel |
16 |
20 |
42 |
42 |
- |
|
150ml |
Stainless steel |
12 |
20 |
30 |
30 |
- |
|
200ml |
Stainless steel |
12 |
20 |
30 |
30 |
- |
|
250ml |
Plastic |
12 |
12 |
30 |
30 |
- |
|
Stainless steel |
12 |
16 |
30 |
30 |
- |
||
300ml |
Stainless steel |
12 |
12 |
30 |
30 |
- |
|
500ml |
Plastic (bottomφ110mm) |
9 |
9 |
20 |
20 |
- |
|
Plastic (bottomφ114mm) |
6 |
9 |
16 |
16 |
- |
||
Stainless steel |
9 |
9 |
20 |
20 |
- |
||
1000ml |
Plastic |
4 |
6 |
9 |
9 |
- |
|
Stainless steel |
4 |
6 |
12 |
12 |
- |
||
2000ml |
Plastic |
- |
- |
6 |
6 |
- |
|
Stainless steel |
- |
- |
6 |
6 |
- |
||
3000ml |
Plastic |
- |
- |
- |
5 |
- |
|
Stainless steel |
- |
- |
- |
5 |
- |
||
2800ml |
Stainless steel |
- |
- |
- |
4 |
- |
|
5000ml |
Stainless steel |
- |
- |
- |
3 |
- |
|
Dimensions of single platform(mm) |
344*307 |
420*348 |
518*424 |
518*424 |
518*424 |
